Intake Air Duct Resonator Replacement
Intake Air Duct Resonator Replacement
Courtesy of GENERAL MOTORS COMPANY

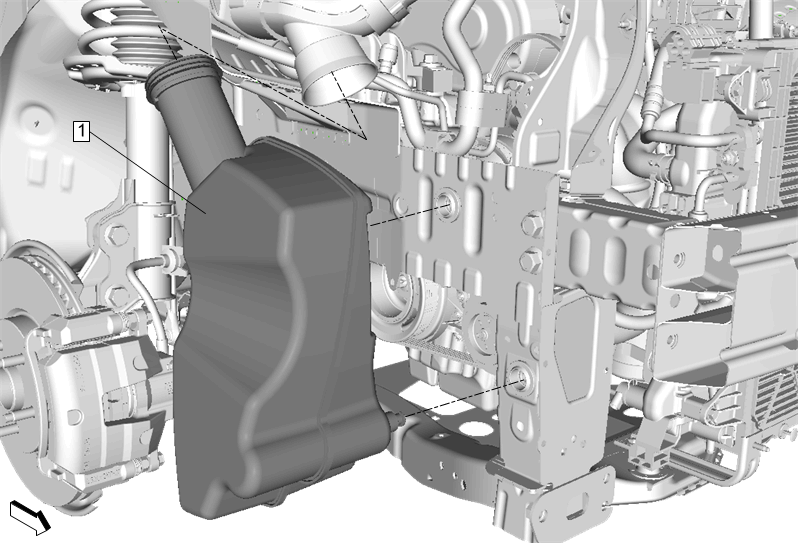

Callout
Component Name
Preliminary Procedures
Air Cleaner Assembly Replacement (2H0)
Front Bumper Fascia Replacement (Chevrolet)
, and
Front Bumper Fascia Replacement (Buick)
1
Intake Air Duct Resonator
Procedure
Remove the intake air duct resonator from retainers.
