Rear Side Door Lock Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

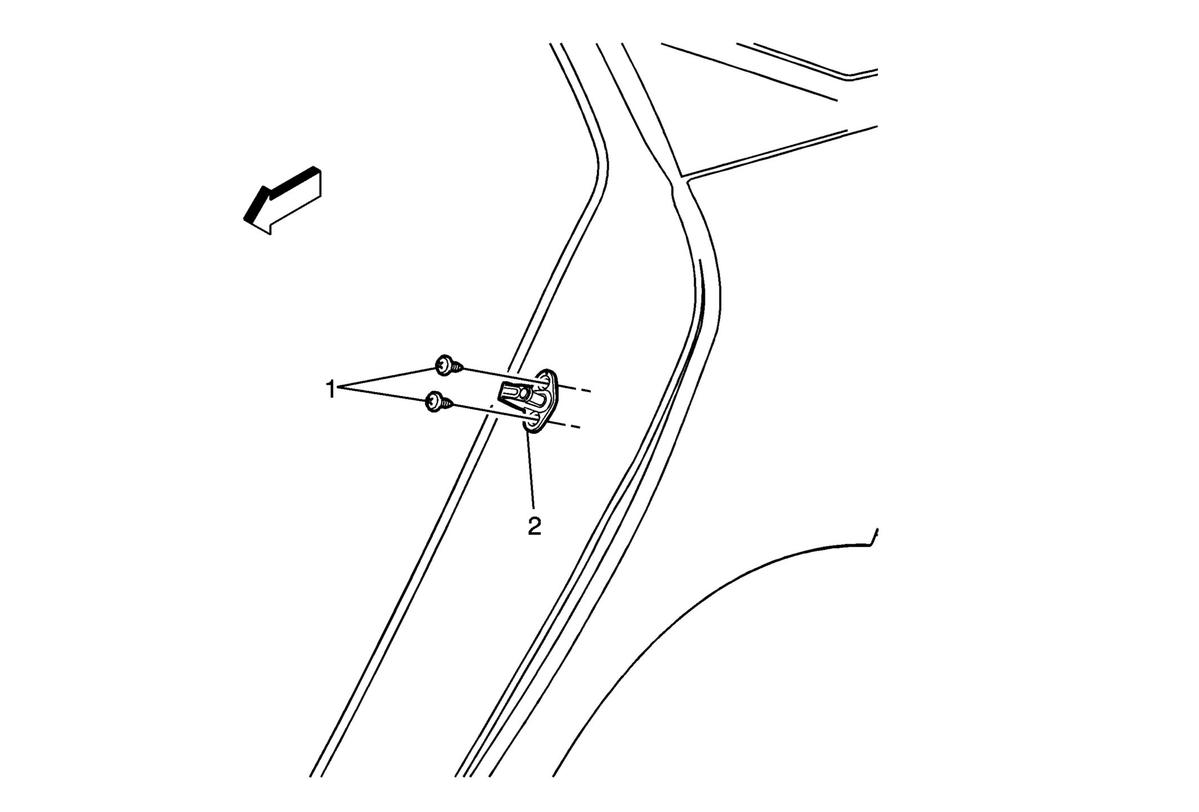

Callout	Component Name
1	Rear Side Door Lock Striker Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Unclip the door lock striker cover from the striker to expose the screws, if equipped. Tighten 22 N.m (16 lb ft)
2	Rear Side Door Lock Striker Procedures Ensure the spacer is in place. Ensure proper alignment after installation. Refer to Rear Side Door Lock Striker Adjustment .

Callout

Component Name

Rear Side Door Lock Striker Screw (Qty: 2)

CAUTION:

Procedure
Unclip the door lock striker cover from the striker to expose the screws, if equipped.
Tighten
22 N.m (16 lb ft)

Rear Side Door Lock Striker

Procedures

Ensure the spacer is in place.
Ensure proper alignment after installation. Refer to Rear Side Door Lock Striker Adjustment .
