Rear Side Door Lock Cylinder Opening Cover Procedure
- Remove the front side door lock cylinder/blank screw access plug.
- Pull and hold the door handle in the open position.
- Do Not remove the door lock cylinder/blank screw completely from the housing. Unscrew the screw to a hard stop, remove the cylinder/blank.
- Release the door handle, at this point the door handle should stay in the open position.
- Remove the door lock cylinder/blank assembly.

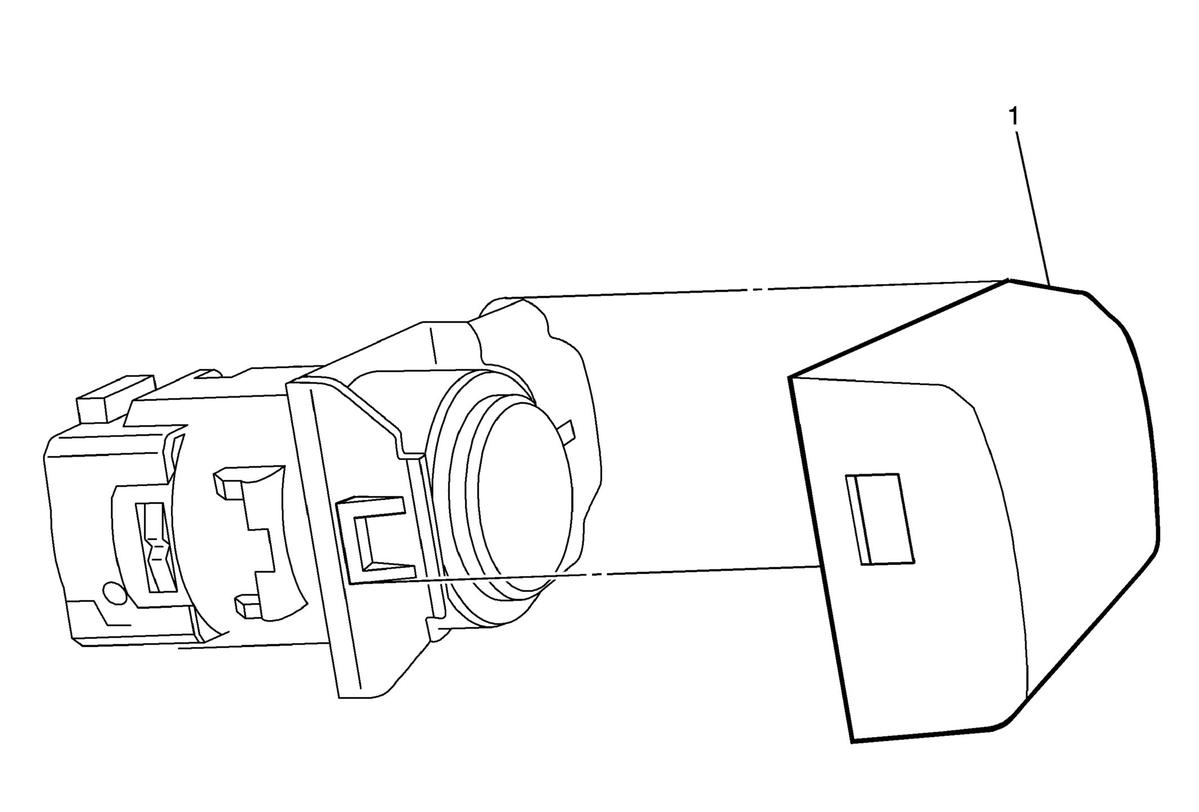

- Remove the door lock cylinder/blank cover (1)
NOTE:
- Remove the rear side door lock cylinder/blank, it not necessary to remove the outside door handle.
- Use a small flat-bladed tool to release the door lock cylinder opening cover retainers location on both sides.
|
