Fuel Tank Filler Door Lock Actuator Replacement

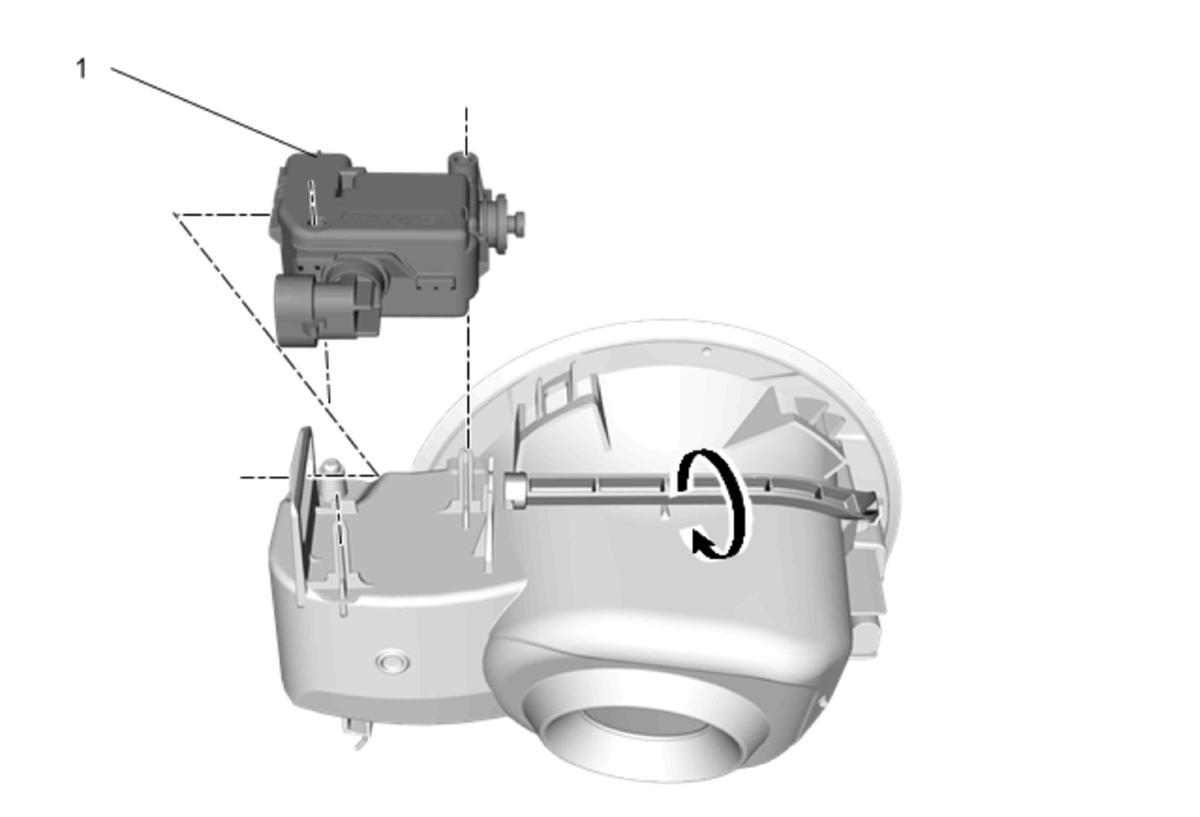

GM4817982Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Filler Door Latch Housing Replacement (Buick) , and Fuel Tank Filler Door Latch Housing Replacement (Chevrolet)
1 Fuel Tank Filler Door Lock Actuator

Procedure

  1. Disconnect the electrical connector.
  2. Remove the actuator rod from the actuator shaft, with light pressure, pressing sideways on the rod at the shafts end, and rotating the rod outward from the housing.
  3. Release the retainers while using light outward pressure on the actuator.
