Front Side Door Lock Cylinder Bezel Replacement

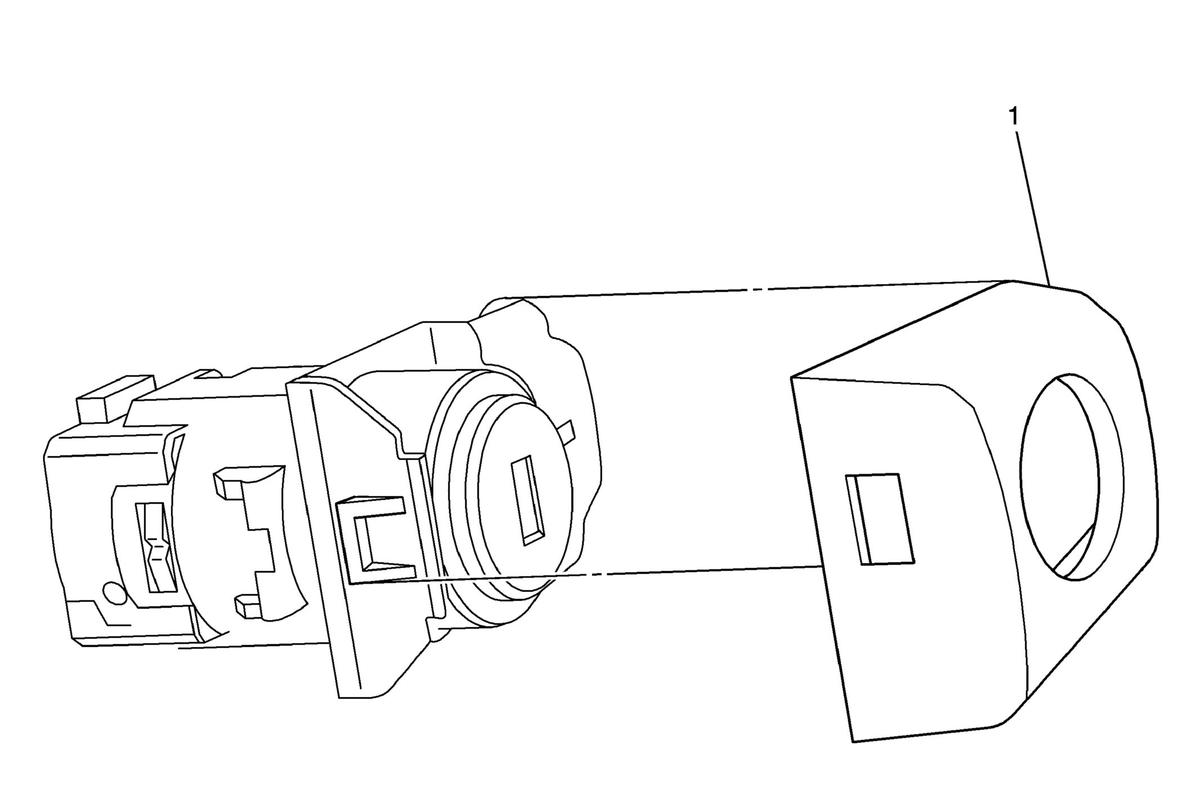

GM2019753

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Front Side Door Lock Cylinder Bezel

Procedure

Remove the front side door lock cylinder, Do Not remove the outside door handle. Refer to Front Side Door Lock Cylinder Replacement .
Do Not remove the door lock cylinder screw completely from the housing. Unscrew the screw to a hard stop, remove the cylinder.

NOTE:

Use a small flat-bladed tool to release the door lock cylinder bezel retainers location on both sides.
