Installation Procedure
Battery Negative Cable (1) - Install
- Battery Negative Cable Nut (2) - Install and tighten 9 N.m (80 lb in)

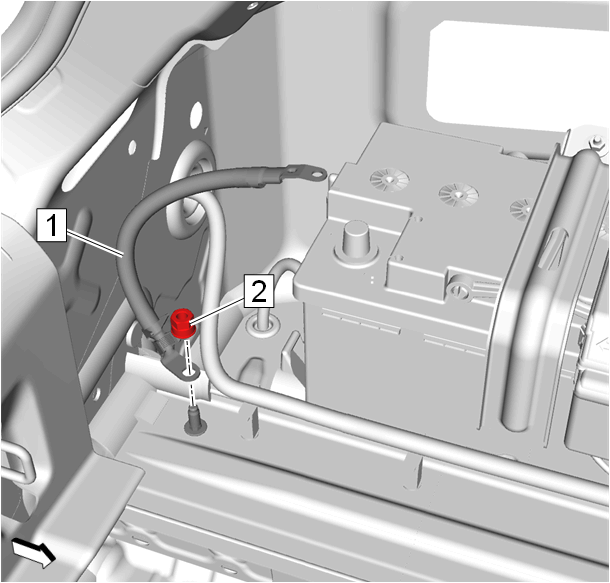

Install the battery negative cable (4) to the battery sensor (2).
- Carefully install the battery negative cable nut (3) while counterhold with a wrench (1) at the torxpin. Tighten to 9 N.m (80 lb in).
Remove all dirt, oil and grease from the battery pole (2) and battery sensor (1).
- Wide open the battery post negative cable clamp of the battery sensor and install the battery sensor to the battery pole without great force.
- Carefully position without great force the battery post negative cable clamp at the bottom of the battery pole as shown in the graphic.
Battery Post Negative Cable Clamp Nut (1) - Install and tighten 4.5 N.m (40 lb in)
- Electrical Connector (2) - Connect

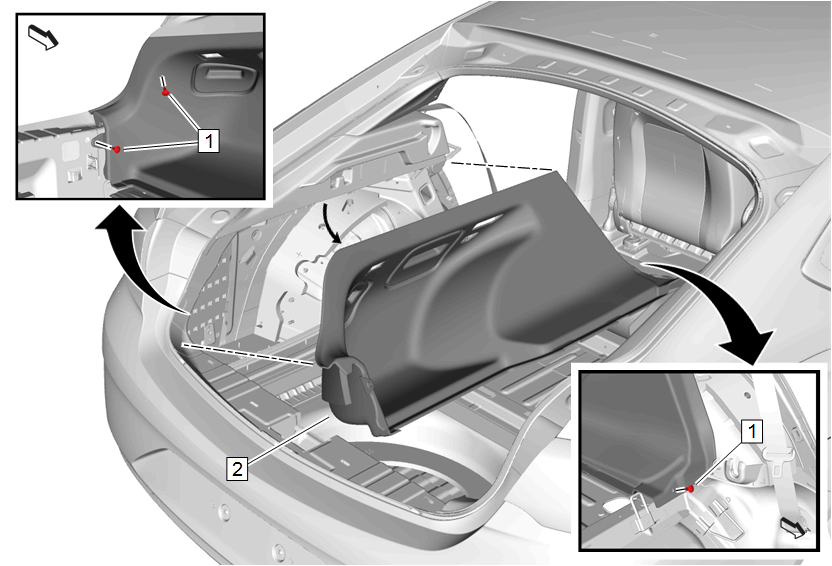

Rear Compartment Side Trim Panel (2) - Install - Rear Compartment Side Trim Replacement - Left Side (Hatchback)
CAUTION:
