Front Compartment Splash Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

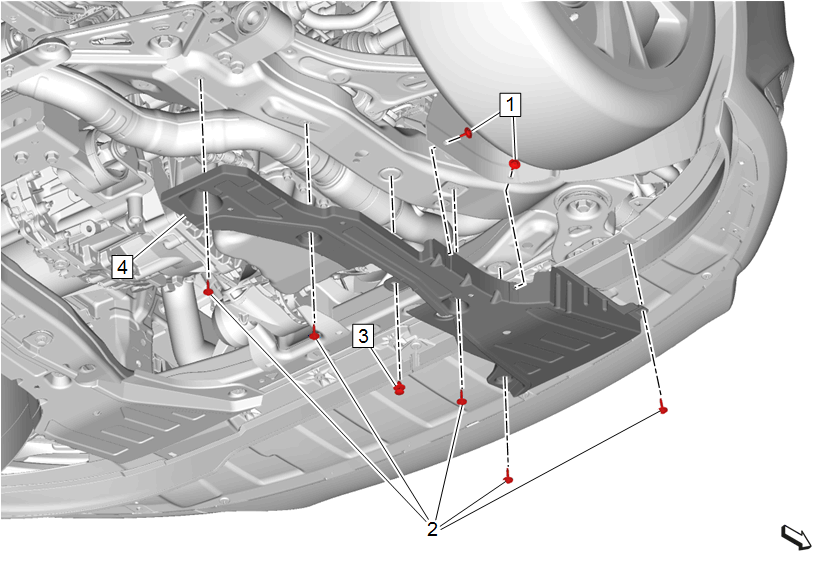

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle
1	Front Wheelhouse Liner Bolt [2x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Compartment Splash Shield Bolt [5x] Tighten  2.5 N.m (22 lb in)
3	Front Compartment Splash Shield Retainer
4	Front Compartment Splash Shield
