Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

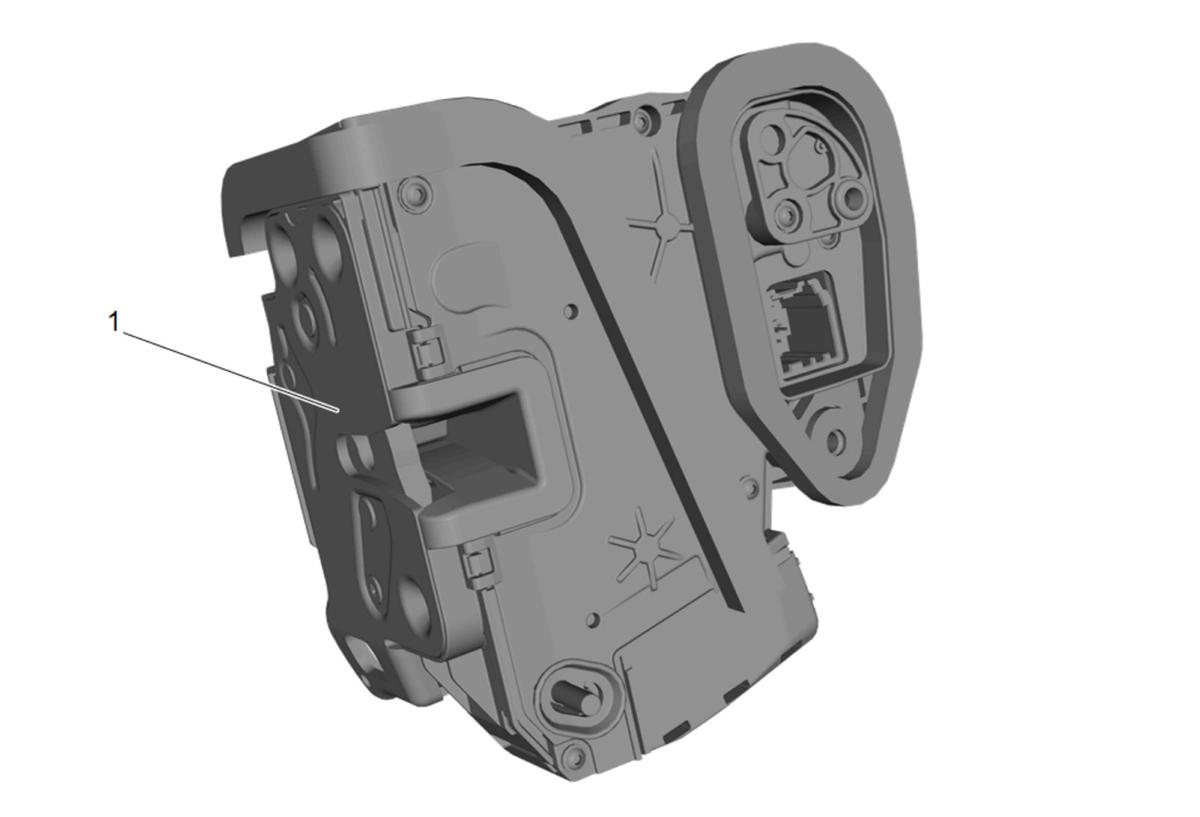

Rear Side Door Latch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Inside Handle Cable (1) - Install - Rear Side Door Inside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle Cable (1) - Install - Rear Side Door Outside Handle Cable Replacement
Transfer components as necessary.

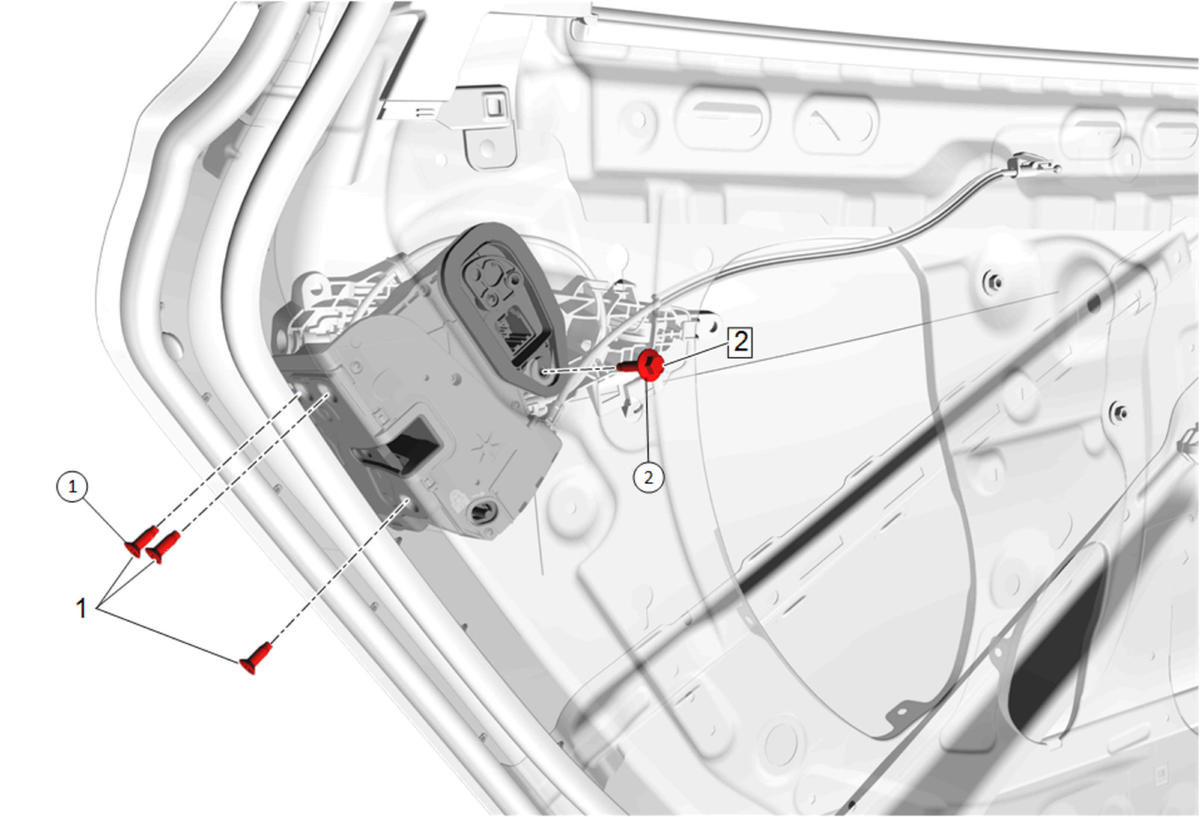

Fig 1: Identifying Rear Side Door Latch Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

NOTE:
Tighten in proper sequence to prevent damage to the latch mechanism.

Rear Side Door Latch Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
Rear Side Door Latch Screw (2) - Install and tighten 11 N.m (97 lb in)
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle Bracket (3) - Install - Rear Side Door Outside Handle Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

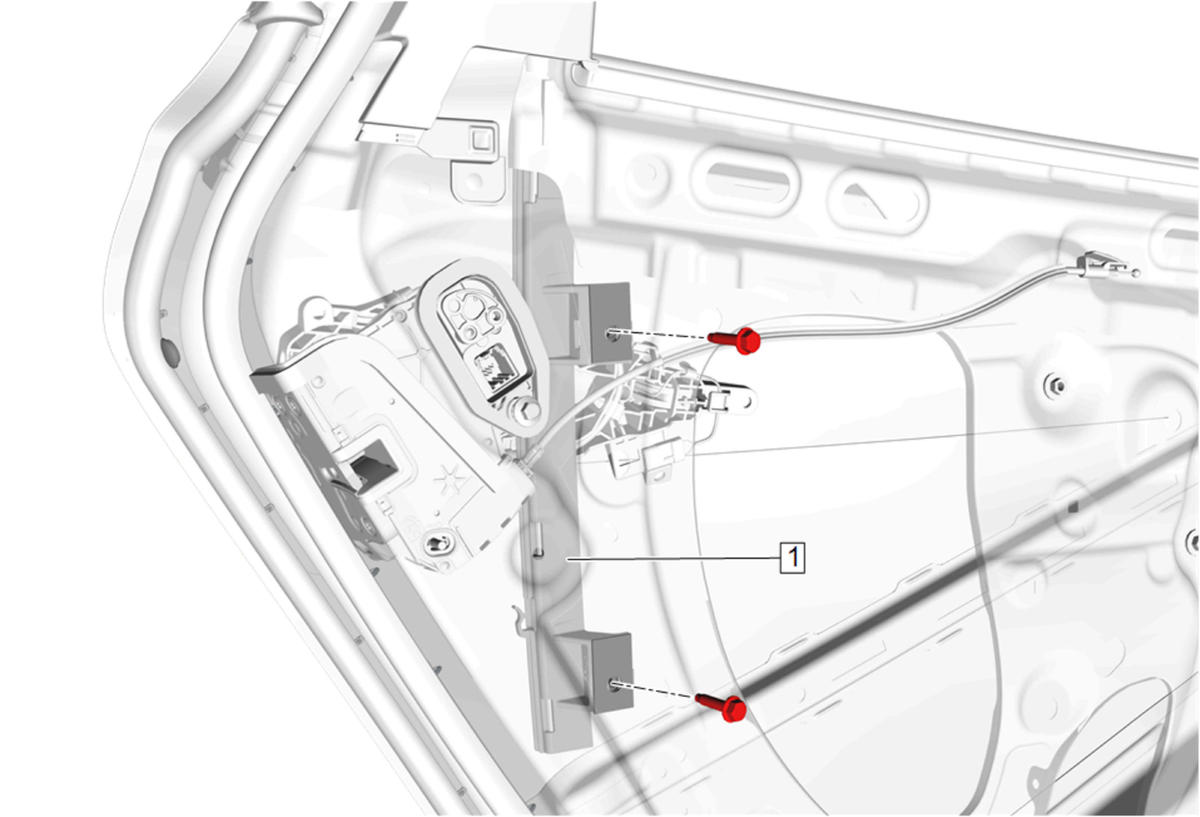

Rear Side Door Window Channel Rear Retainer (1) - Install - Rear Side Door Window Channel Rear Retainer Replacement
Connect the electrical connector.
Inspect the door latch, window and outside handle for proper operation before installing the door trim.
