Front Side Door Lock Cylinder Replacement

Courtesy of GENERAL MOTORS COMPANY

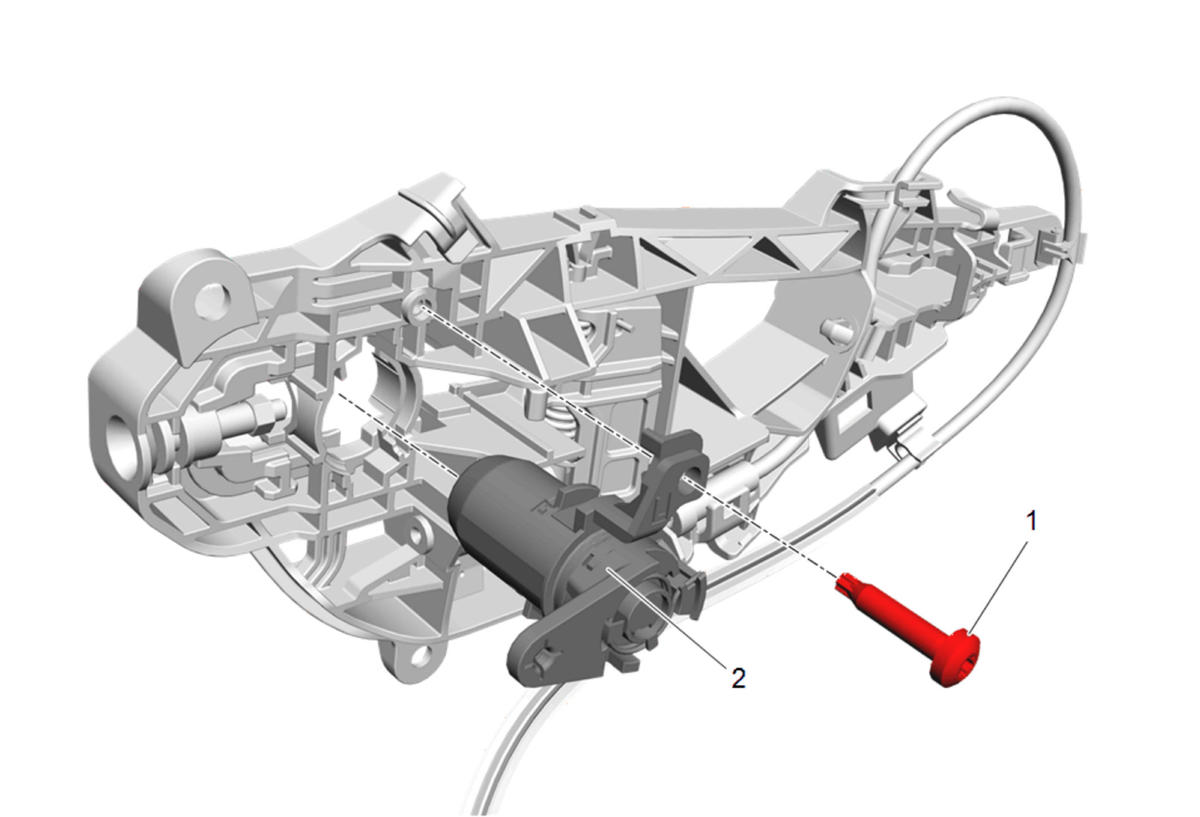

Callout	Component Name
Preliminary Procedure  Front Side Door Outside Handle Bracket Replacement
1	Front Side Door Lock Cylinder Screw CAUTION: Refer to Fastener Caution . Tighten  4.7 N.m (42 lb in)
2	Front Side Door Lock Cylinder
