Steering Wheel Secondary/Configurable Control

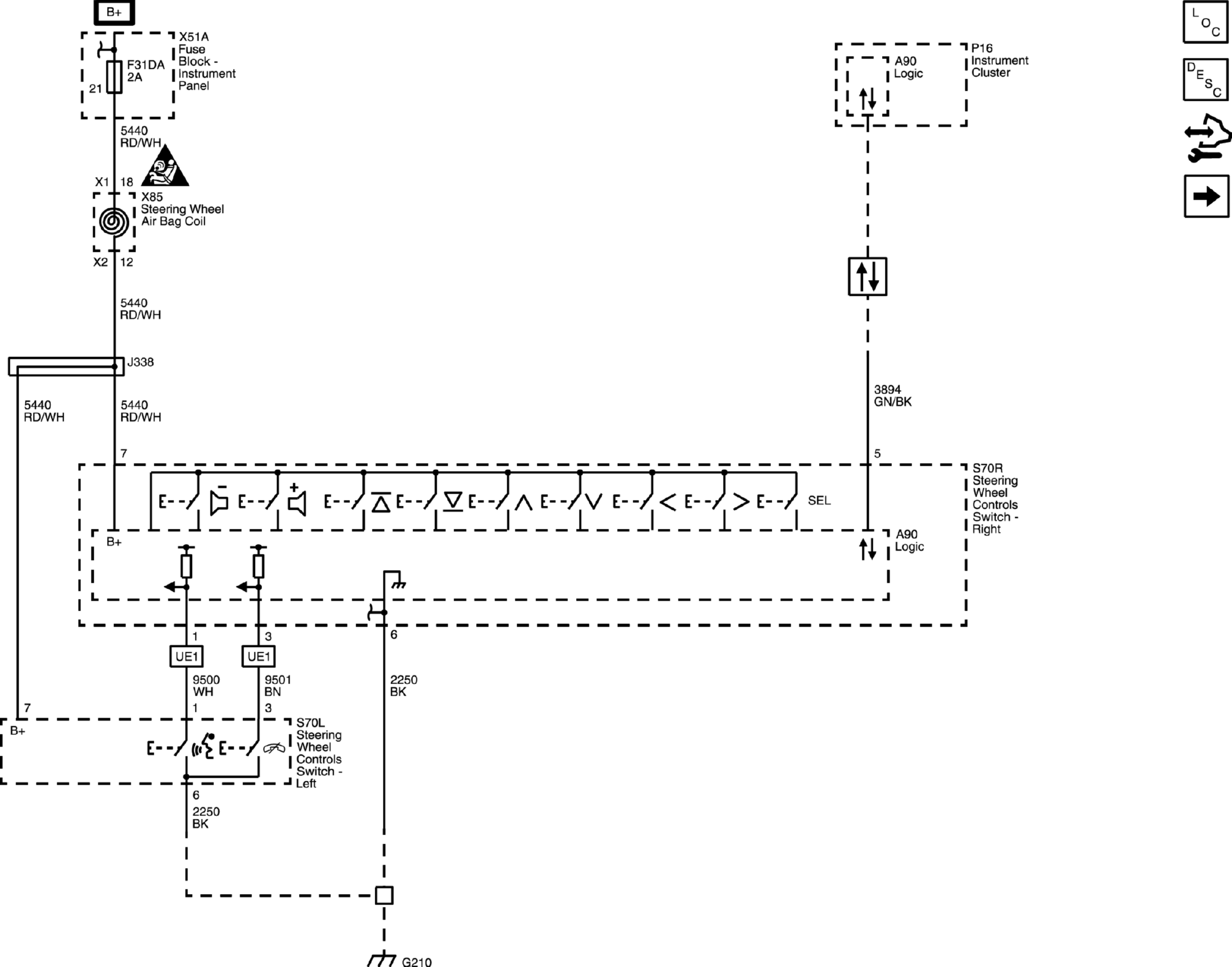

GM4899093

Courtesy of GENERAL MOTORS COMPANY

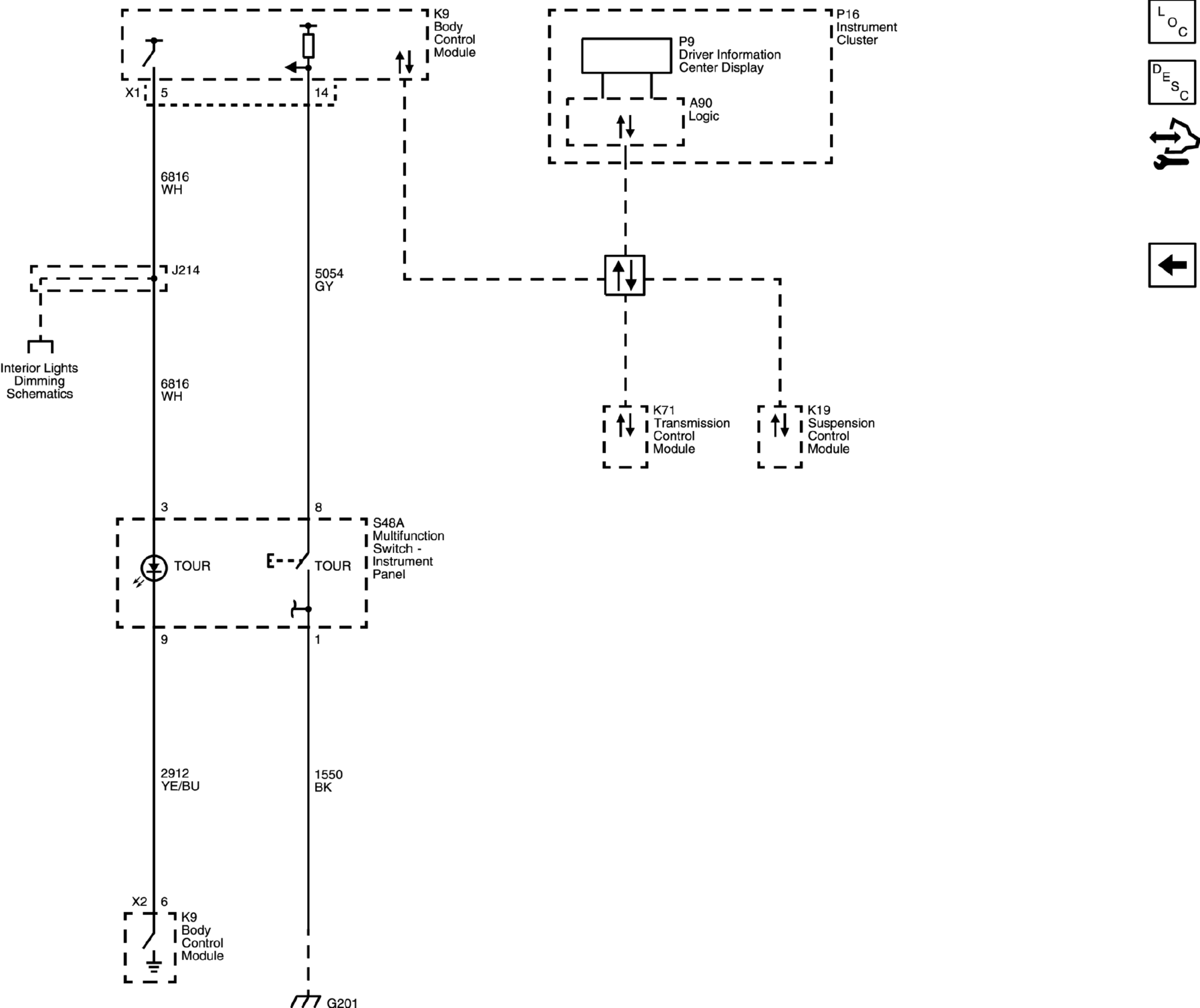

GM5087649

Courtesy of GENERAL MOTORS COMPANY
