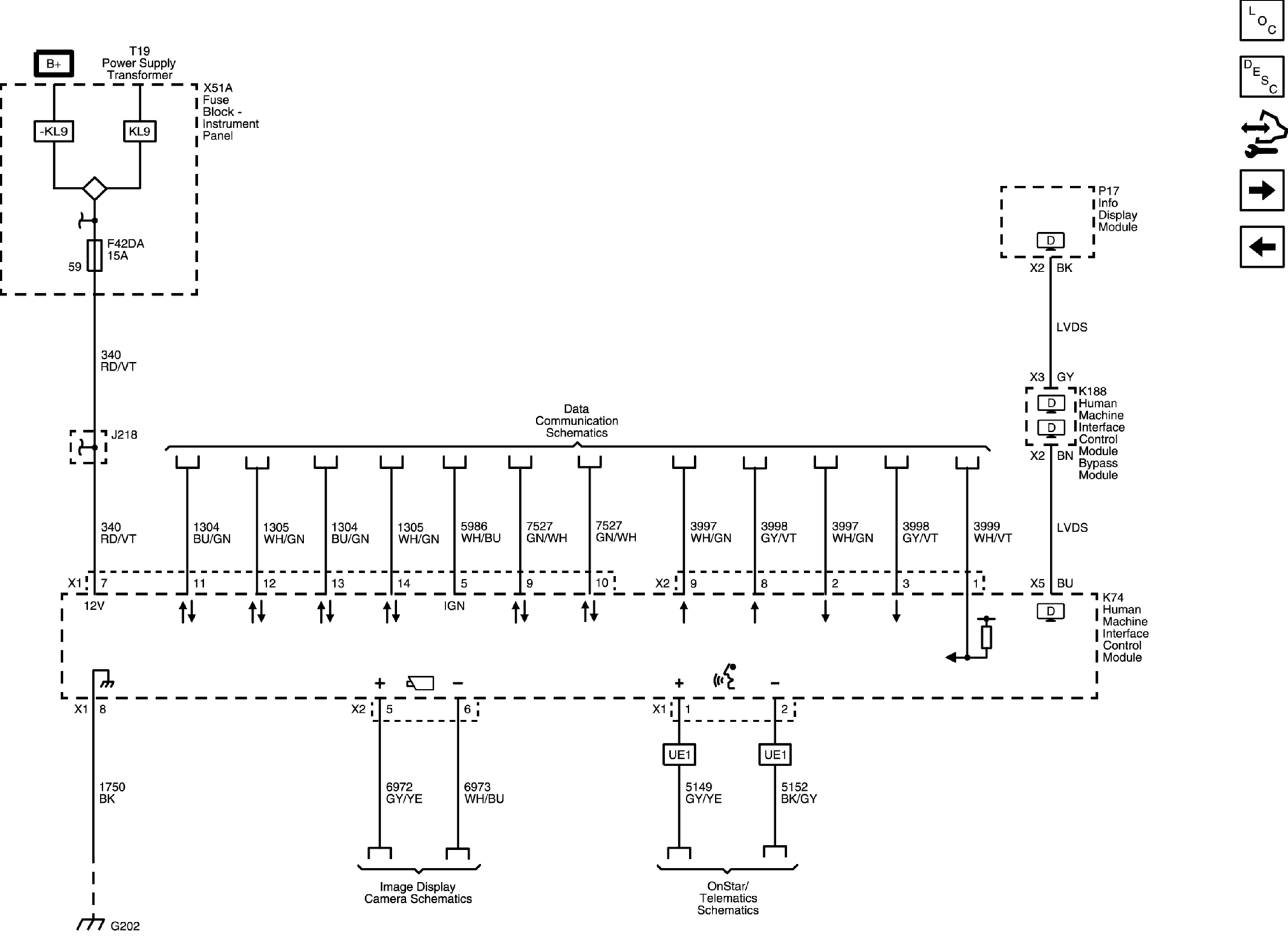

Human Machine Interface Control and Info Display Modules Power, Ground and Serial Data

GM4899208

Courtesy of GENERAL MOTORS COMPANY
