Windshield Defroster Outlet Duct Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

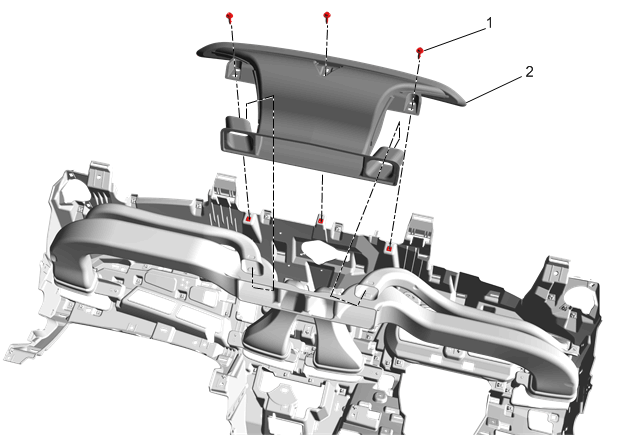

GM3914245Courtesy of GENERAL MOTORS COMPANY
Call out Component Name
Preliminary Procedure
Instrument Carrier Replacement
1 Windshield Defroster Outlet Duct Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten 2.5 N.m (22 lb in)
2 Windshield Defroster Outlet Duct
