Front Parking Assist Alarm Sensor Bracket Replacement: Notes

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

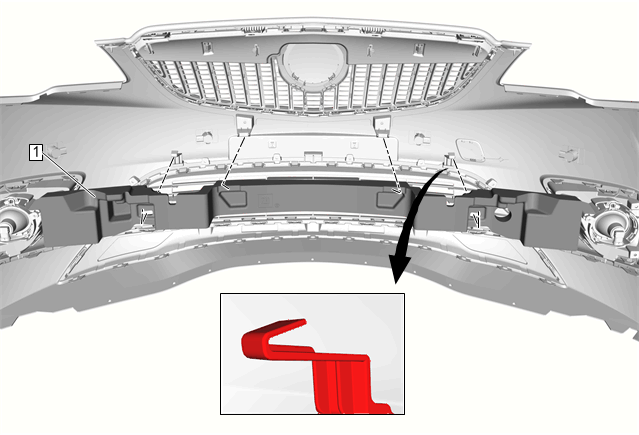

  1. GM4859981

    Front Bumper Fascia Energy Absorber (1) - Remove - Front Bumper Fascia Energy Absorber Replacement

  2. GM3905202

    Front Parking Assist Alarm Sensor (1) - Remove - Front Parking Assist Alarm Sensor Replacement

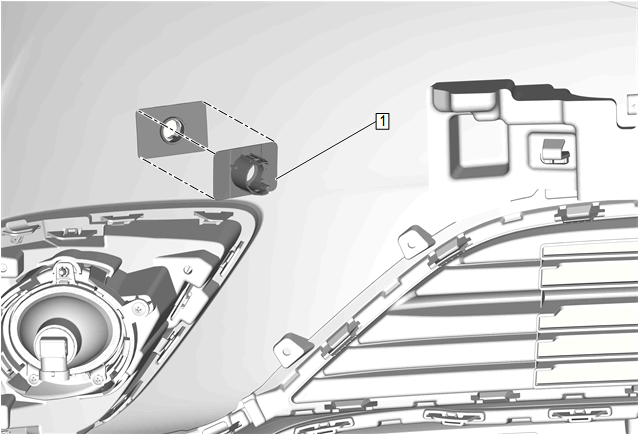

  3. GM5152421

    Using a flat bladed tool, carefully remove the front parking assist alarm sensor bracket (1) from the fascia.

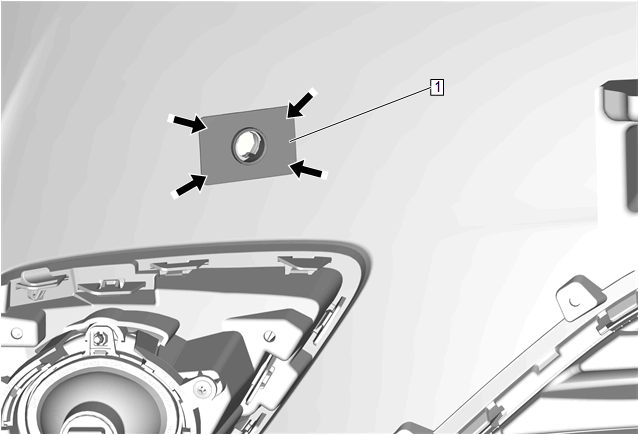

  4. GM5152423
    NOTE:

    Do Not sand/grind off alignment tabs / outline.

    Using an appropriate tool, sand/grind sonic weld plastic residue from the fascia (1).
