Front Lower Control Arm Rear Bushing Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

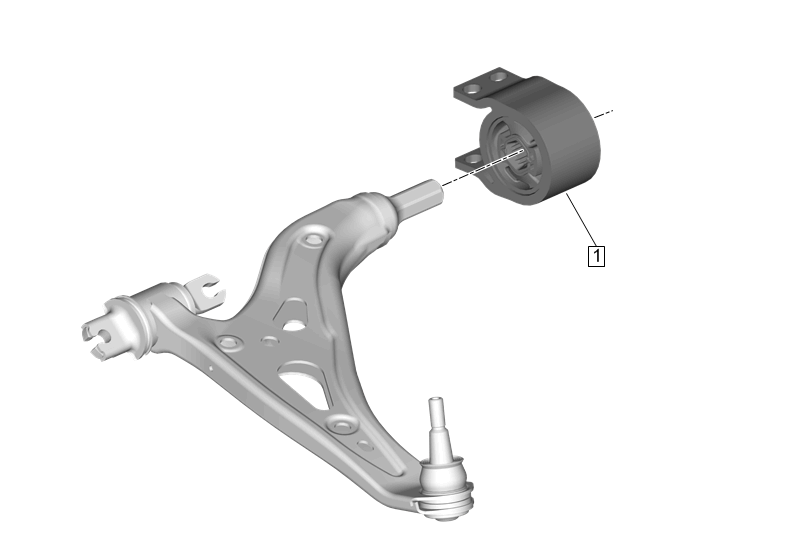

Callout	Component Name
Preliminary Procedure Lower Control Arm Replacement (GNB) Lower Control Arm Replacement (GNA)
1	Front Lower Control Arm Rear Bushing Procedure Place match marks on the front lower control arm and front lower control arm rear bushing to aid in installation. Secure the front lower control arm in a vise and use a suitable puller to remove the front lower control arm rear bushing. Copy any match marks to aid in installation, if necessary.

Callout

Component Name

Preliminary Procedure
Lower Control Arm Replacement (GNB) Lower Control Arm Replacement (GNA)

Front Lower Control Arm Rear Bushing

Procedure

Place match marks on the front lower control arm and front lower control arm rear bushing to aid in installation.
Secure the front lower control arm in a vise and use a suitable puller to remove the front lower control arm rear bushing.
Copy any match marks to aid in installation, if necessary.
