Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

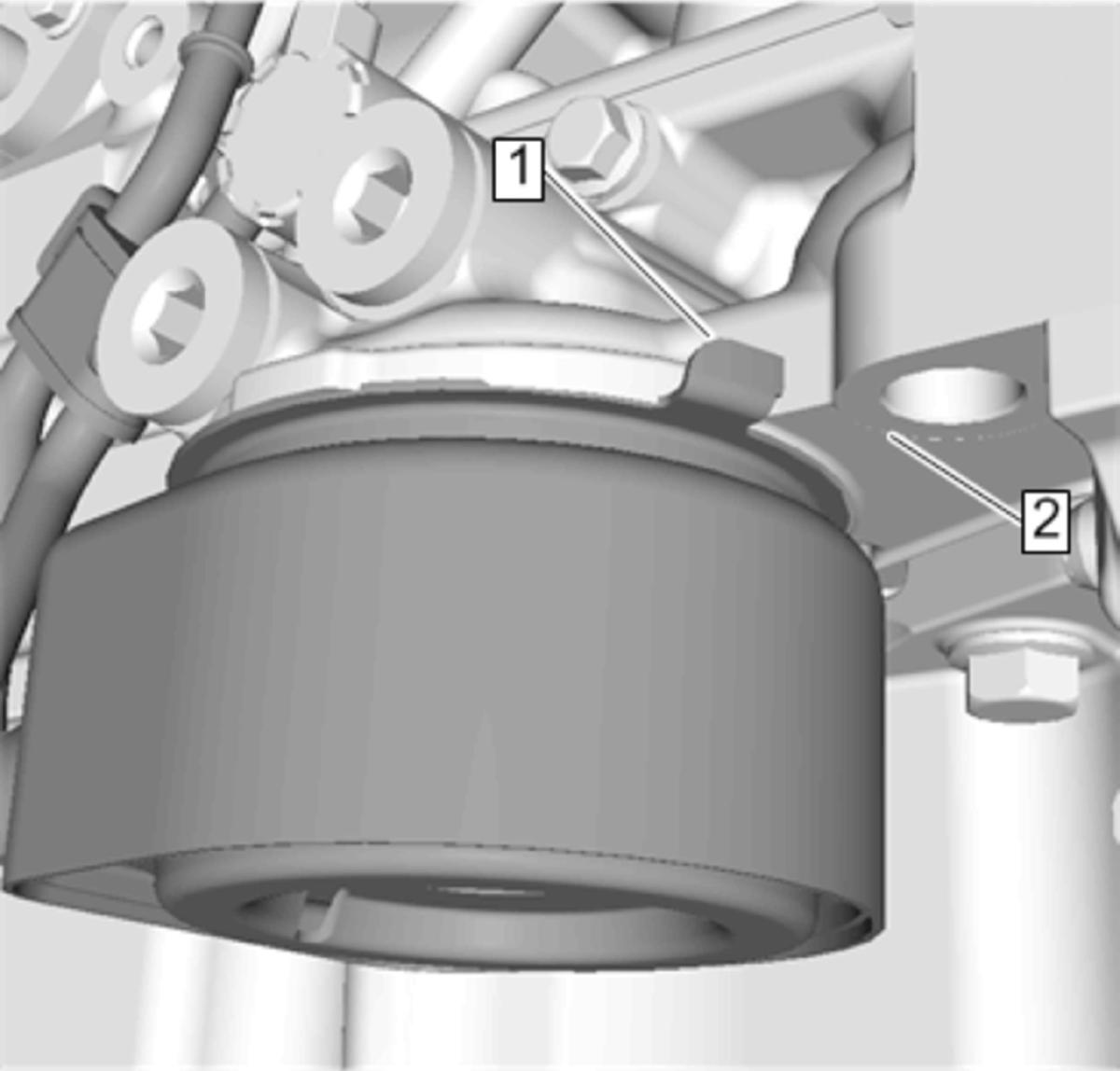

When installing the engine oil cooler, position the engine oil cooler so that the tab (1) is against the engine block (2).
Install a NEW seal. (3)
- Install the engine oil cooler. (2)
- Install the engine oil cooler connector. (1) Tighten 50 N.m (37 lb ft).
Install the oil cooler inlet and outlet hoses. (2)
- Install the engine oil cooler pipe fastener.Tighten 10 N.m (89 lb in)
- Fill the cooling system. Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static)
- Install the oil filter. Engine Oil and Oil Filter Replacement (LTG)Engine Oil and Oil Filter Replacement (LCV)
CAUTION:
Refer to Component Fastener Tightening Caution .
CAUTION:
Refer to Fastener Caution .
