Mode Control Cam Actuator Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

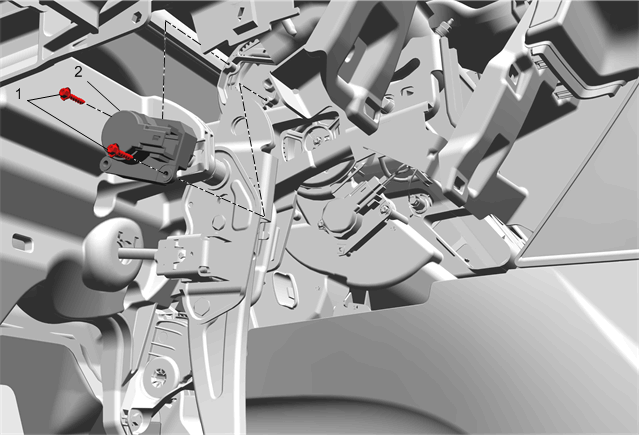

Call out	Component Name
Preliminary Procedure Brake and Accelerator Pedal Assembly Replacement
1	Mode Control Cam Actuator Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Mode Control Cam Actuator Procedures Disconnect the electrical connector. Actuator Recalibration Clear the DTCs from the heater and air conditioning remote control module.

Call out

Component Name

Preliminary Procedure
Brake and Accelerator Pedal Assembly Replacement

Mode Control Cam Actuator Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Mode Control Cam Actuator

Procedures

Disconnect the electrical connector.
Actuator Recalibration
Clear the DTCs from the heater and air conditioning remote control module.
