Active Noise Cancellation Microphone Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the area of the headliner according to the location of the microphone being replaced. Headlining Trim Panel Replacement
1	Active Noise Cancellation Microphone [3x] Procedure Disconnect the electrical connector. Disengage the microphone harness from the adhesive on the headliner. Unlock the retaining tabs. Use a suitable tool. Attach the new microphone harness to the headliner using an appropriate adhesive.

Callout

Component Name

Preliminary Procedure
Lower the area of the headliner according to the location of the microphone being replaced. Headlining Trim Panel Replacement

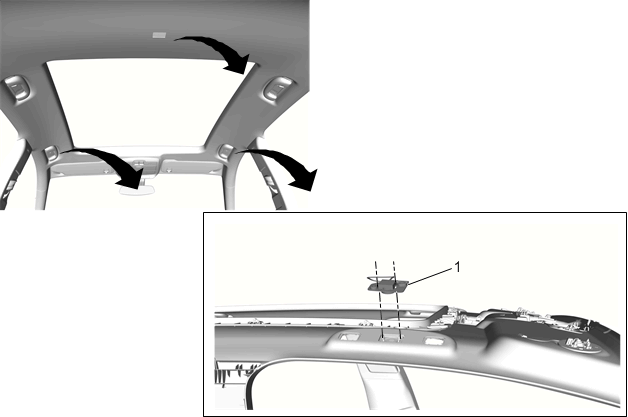

Active Noise Cancellation Microphone [3x]

Procedure

Disconnect the electrical connector.
Disengage the microphone harness from the adhesive on the headliner.
Unlock the retaining tabs.
Use a suitable tool.
Attach the new microphone harness to the headliner using an appropriate adhesive.
