Water Pump Replacement (LE2)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

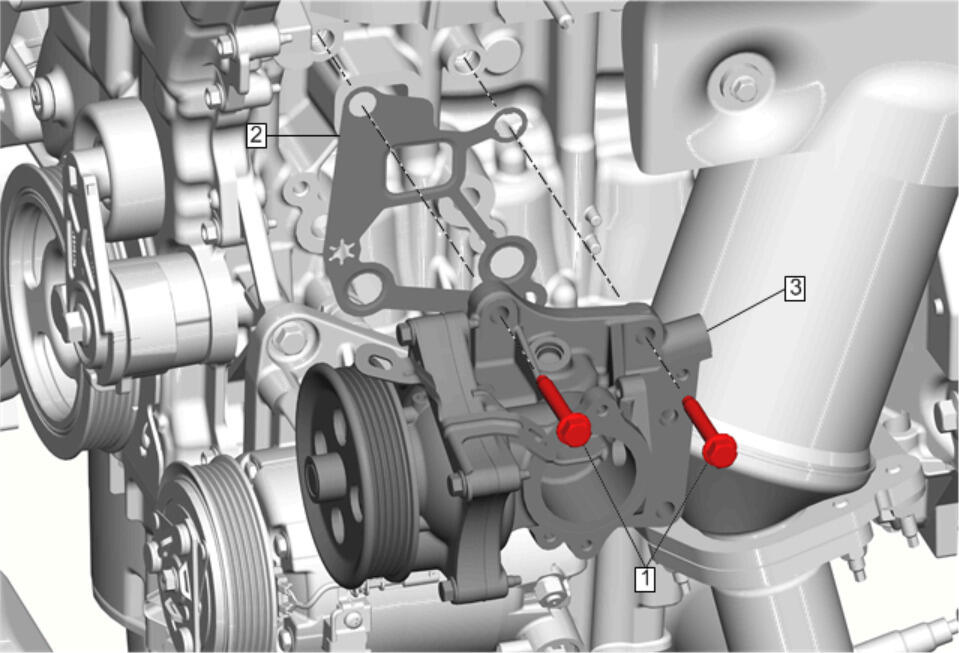

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement Engine Oil Cooler Replacement (LUV) Engine Oil Cooler Replacement (LE2) Engine Oil Cooler Replacement (2H0) Engine Coolant Thermostat Housing Replacement (2H0) Engine Coolant Thermostat Housing Replacement (LE2) Turbocharger Oil Feed Pipe Replacement - Reposition Thermostat Bypass Pipe Replacement (LE2) @Water Pump - Disconnect Turbocharger Coolant Feed Pipe Replacement (LUV) Turbocharger Coolant Feed Pipe Replacement (LE2) Charge Air Cooler Inlet Air Hose Replacement @Turbocharger - Disconnect
1	Water Pump Bolt[2X] CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Gasket Procedure Install a NEW gasket.
3	Water Pump
