Radiator Replacement (2H0)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

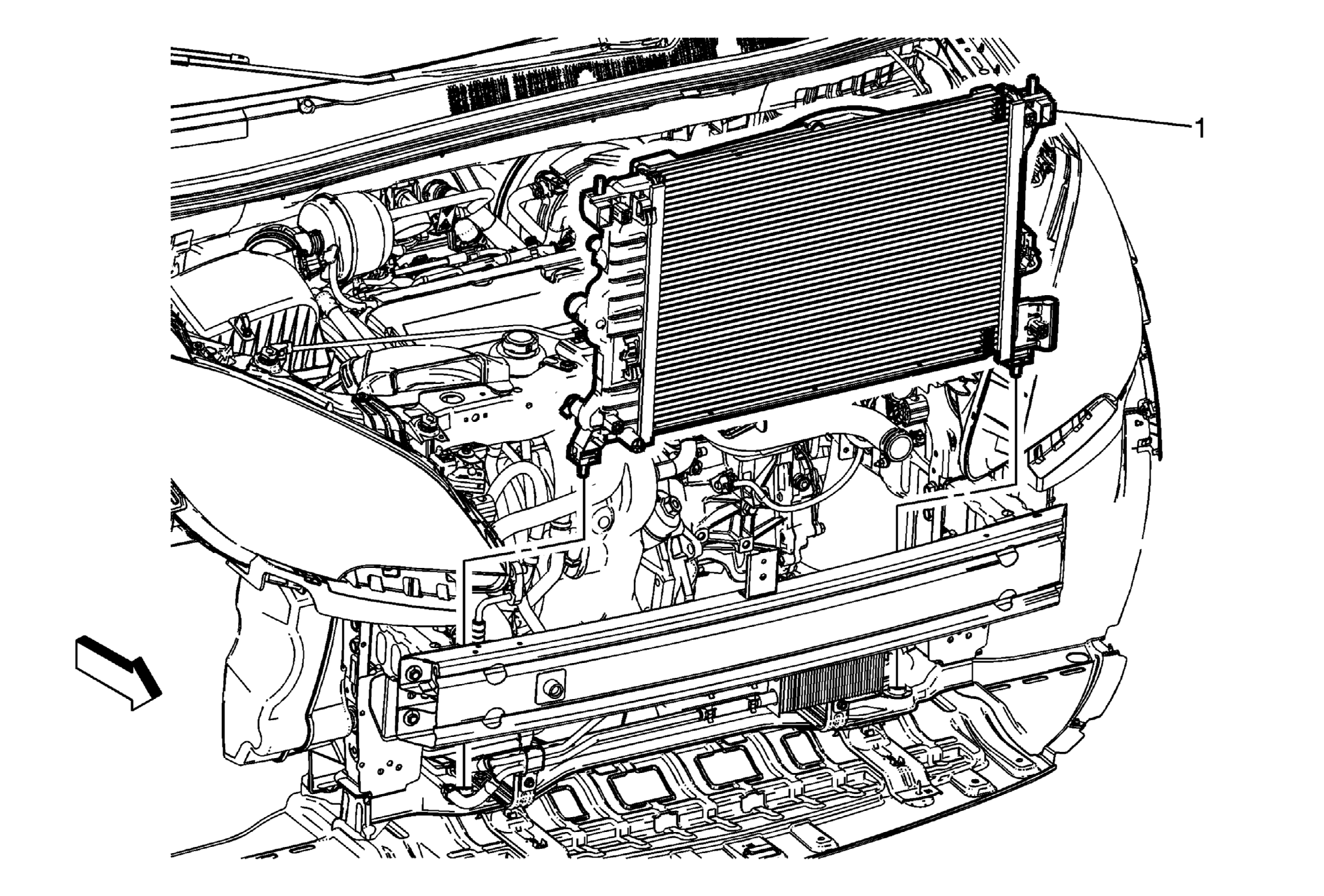

GM2809975
Callout Component Name

Preliminary Procedures

  1. Remove the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (LUV)Air Conditioning Condenser Replacement (LE2) .
  2. Disconnect the radiator inlet and outlet hoses from the radiator assembly. Refer to Radiator Inlet Hose Replacement (LUV) Radiator Inlet Hose Replacement (2HO) Radiator Inlet Hose Replacement (LE2) , and Radiator Outlet Hose Replacement (LUV) Radiator Outlet Hose Replacement (2H0) Radiator Outlet Hose Replacement (LE2) .
  3. Remove the transmission fluid auxiliary cooler and the transmission fluid cooler inlet pipe from the radiator if equipped. Refer to Transmission Fluid Auxiliary Cooler Replacement (2H0)Transmission Fluid Auxiliary Cooler Replacement (LE2, LUV) , and Transmission Fluid Cooler Inlet Pipe Replacement (2HO) .
  4. Remove the radiator upper brackets. Refer to Radiator Upper Bracket Replacement (2H0) Radiator Upper Bracket Replacement (LUV) Radiator Upper Bracket Replacement (LE2) .
1 Radiator
Procedure
Unclip the engine coolant fan shroud from the radiator.
