Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Floor Air Outlet Duct - Right Side(2) - Remove - Floor Front Air Outlet Duct Replacement - Right Side
Instrument Panel Compartment - Remove - Instrument Panel Compartment Replacement
Heater and Air Conditioning Control with Cable Control(2) - Remove - Heater and Air Conditioning Control with Cable Control Replacement (C60)

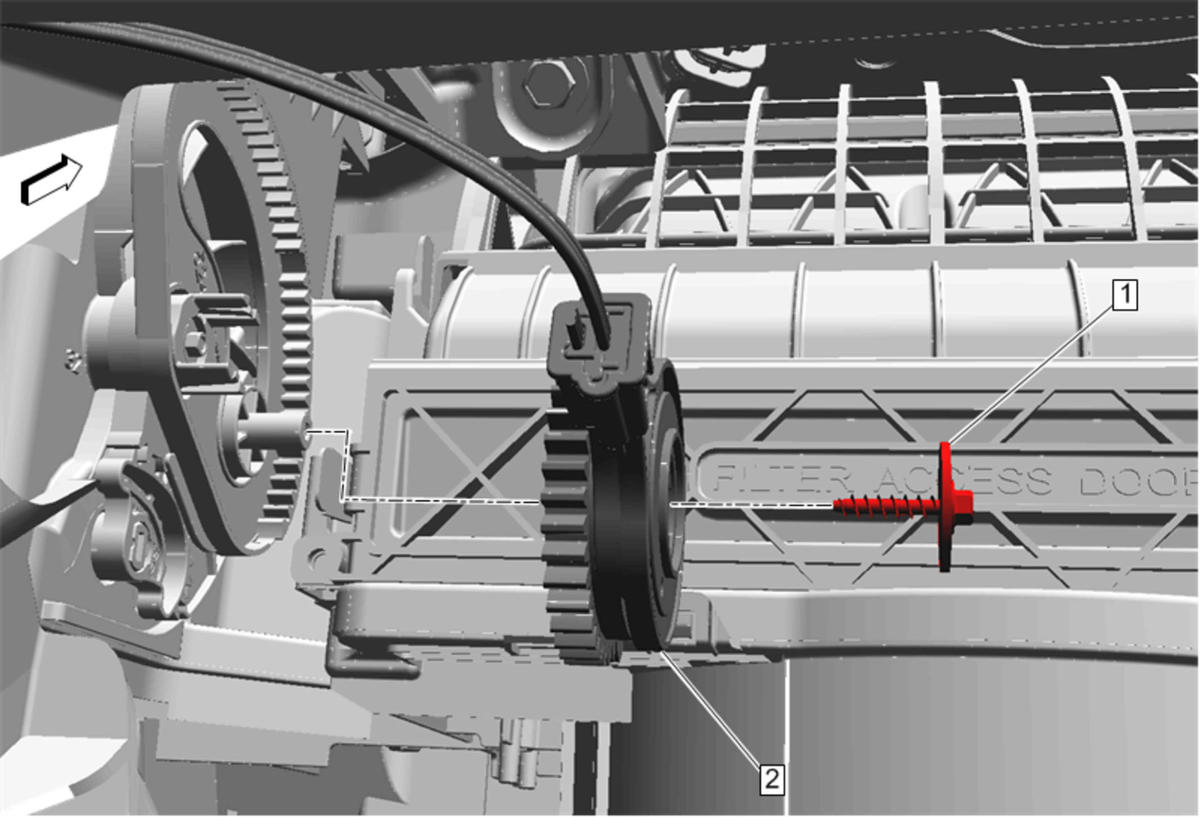

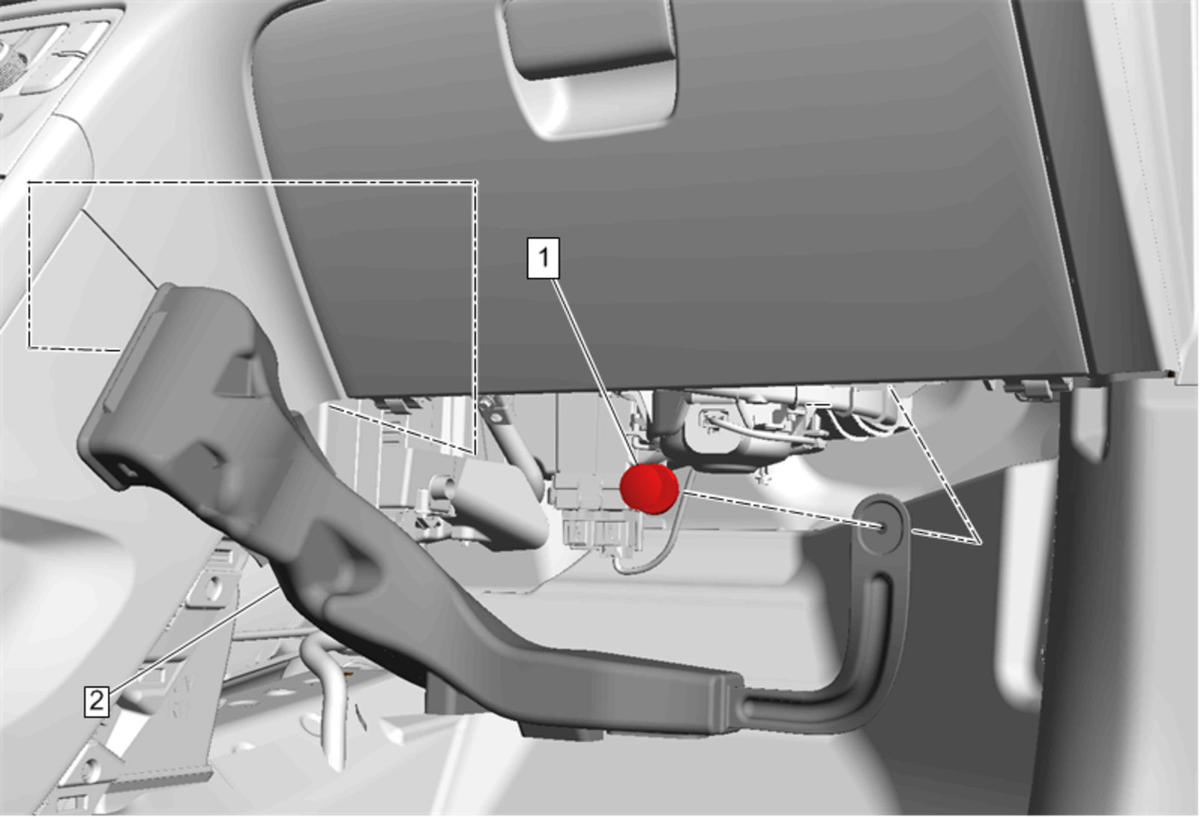

Remove the temperature control cable retaining screw (1) and the temperature control cable (2) from the heater and air conditioning evaporator and blower module.
NOTE:
When replacing the temperature control cable, perform step 5, 6, and 7 in order to remove the temperature control cable without the removal of the instrument panel tie bar.

Remove the temperature control cable pulley (3) from heater and air conditioning control side cable end and release the cable retainer (1).
Remove the wire (2) from the temperature control cable pulley groove (3).
Move the temperature control cable barrel (3) forward out of the pulley (2) detent, and slip the cable out of the detent to remove the temperature control cable assembly (1) from the pulley (2).
Maneuver the temperature control cable out from behind the tie bar and the instrument panel.
