Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

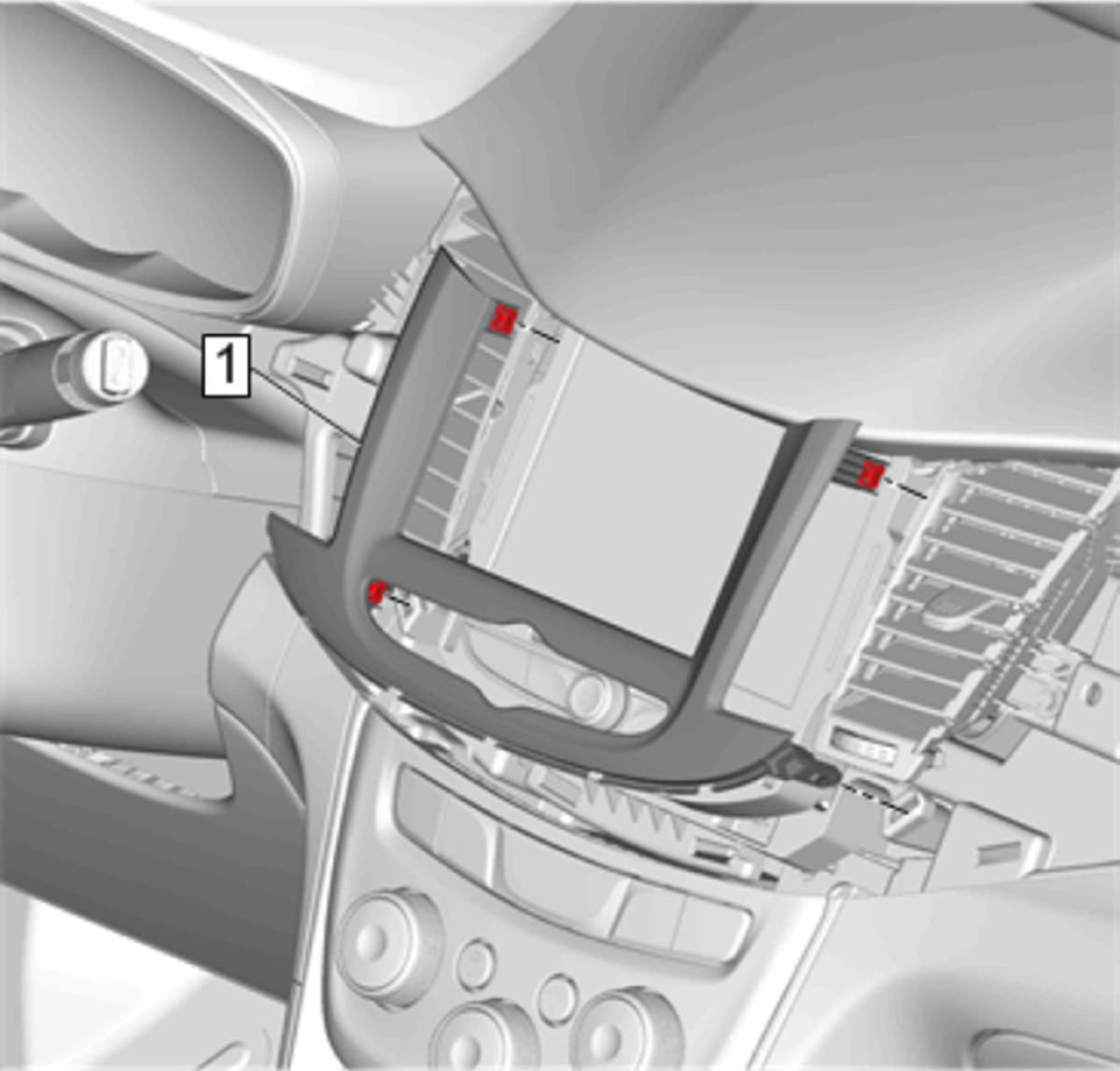

  1. GM4892319

    Instrument Panel Radio Front Trim Plate (1) - Remove - Instrument Panel Radio Front Trim Plate Replacement (RPO IOA/IOR, Chevrolet)

  2. GM4510320

    Heater and Air Conditioning Control with Cable Control (2) - Remove - Heater and Air Conditioning Control with Cable Control Replacement (C60)

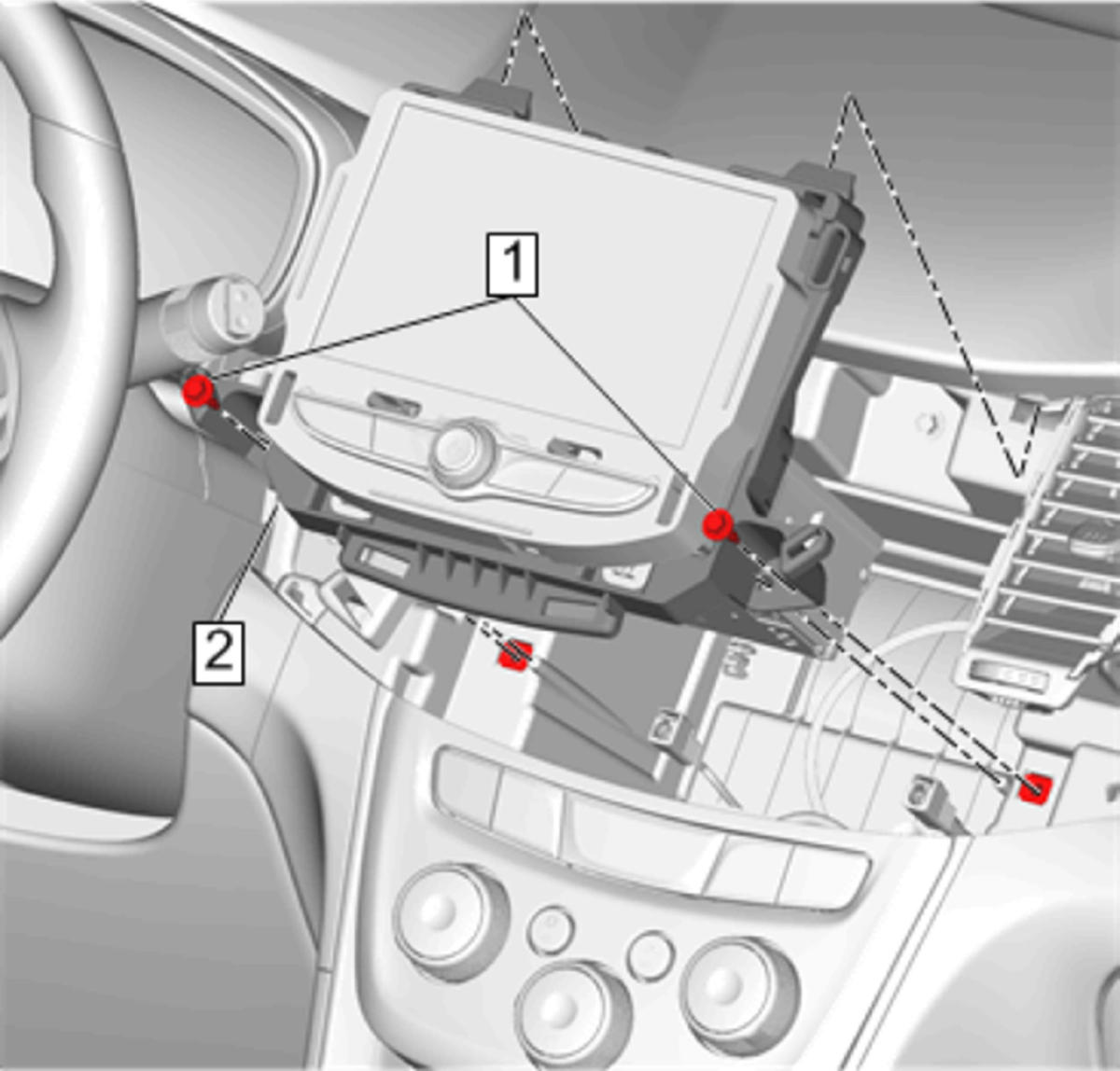

  3. GM4892330

    Radio Bracket Bolt (1) - Remove [2x]

  4. Radio Bracket (2) - Remove
  5. Disconnect the electrical connectors.
  6. Transfer components as necessary.
