Compressor Pressure Relief Valve Replacement (LUV)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front compartment front center insulator. Refer to Front Compartment Front Center Insulator Replacement .

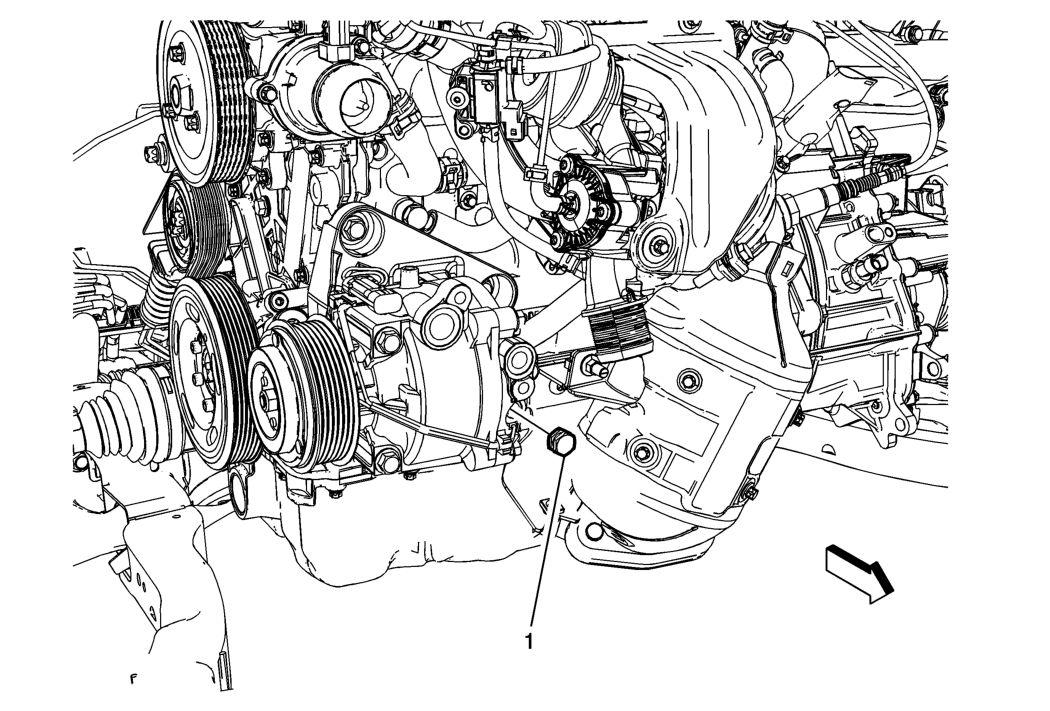

1	Air Conditioning Compressor Pressure Relief Valve CAUTION: Refer to Fastener Caution . Procedure Discard the old O-ring and replace with a NEW O-ring.

Callout

Component Name

Preliminary Procedure

Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front compartment front center insulator. Refer to Front Compartment Front Center Insulator Replacement .

Air Conditioning Compressor Pressure Relief Valve

CAUTION:

Refer to Fastener Caution .

Procedure
Discard the old O-ring and replace with a NEW O-ring.
