Air Conditioning Evaporator Module Drain Hose Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Replacement - Right Side Pull the right front carpet back away from the right center of the vehicle. CAUTION: Refer to HVAC Module Drain Tube Caution .

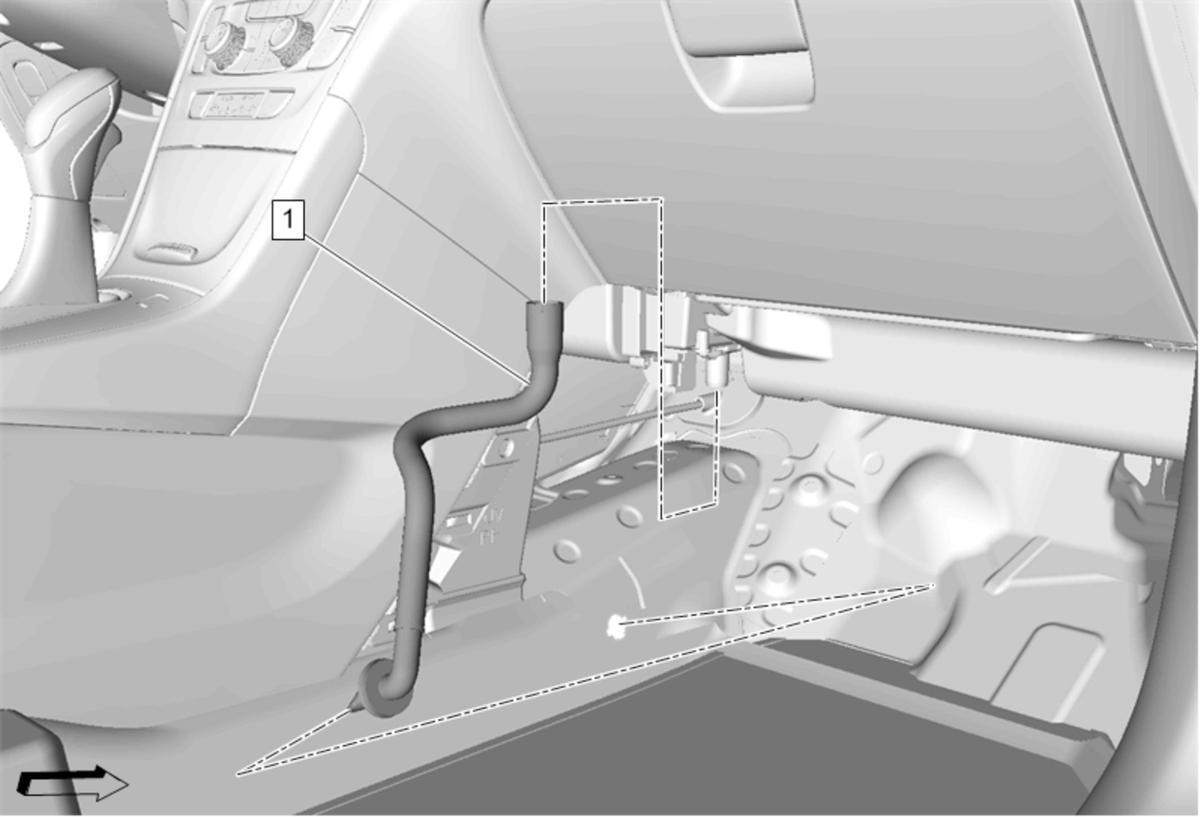

1	Air Conditioning Evaporator Module Drain Hose

Callout

Component Name

Preliminary Procedures

Front Floor Console Extension Replacement - Right Side
Pull the right front carpet back away from the right center of the vehicle.

CAUTION:

Refer to HVAC Module Drain Tube Caution .

Air Conditioning Evaporator Module Drain Hose
