Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refrigerant Recovery and Recharging (R-134a)
  2. Drive Belt@Air Conditioning Compressor - Remove - Drive Belt Replacement
  3. GM2790881

    Front Compartment Insulator(4) - Remove - Front Compartment Front Center Insulator Replacement

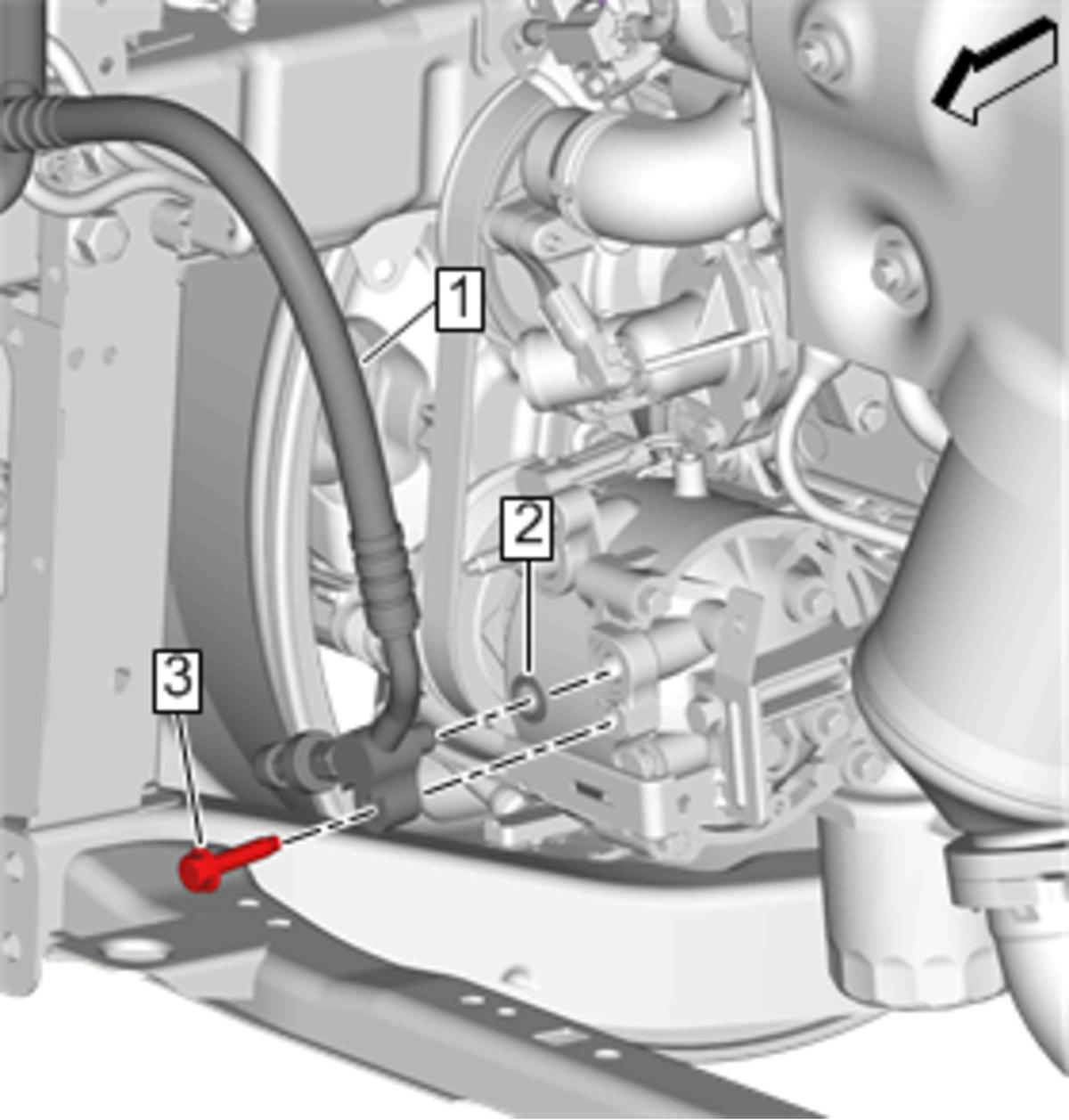

  4. GM4116955

    Air Conditioning Condenser Hose(1)@Air Conditioning Compressor - Remove - Air Conditioning Condenser Hose Replacement (2H0) Air Conditioning Condenser Hose Replacement (LUV) Air Conditioning Condenser Hose Replacement (LE2)

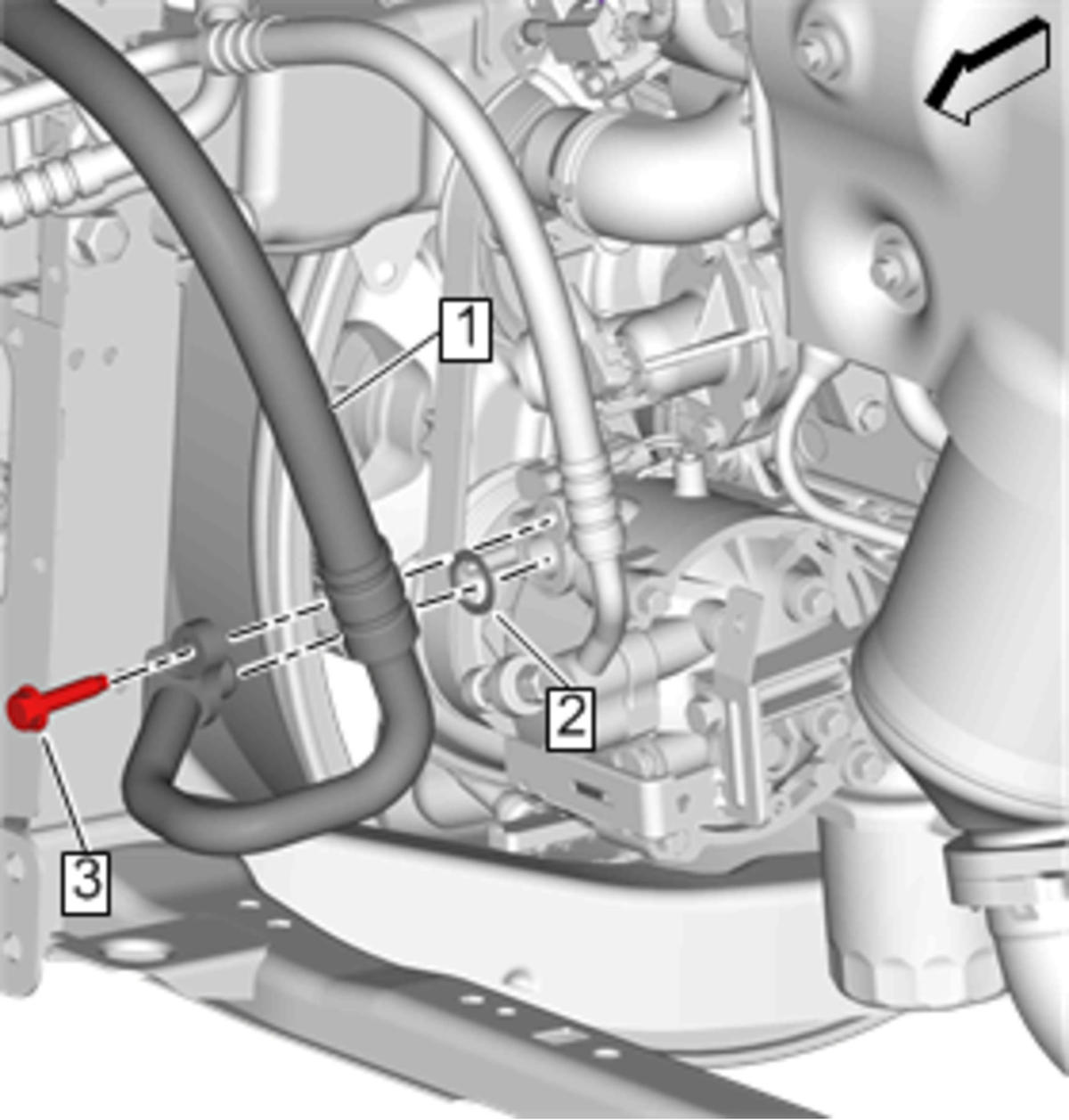

  5. GM4116958

    Air Conditioning Compressor Hose(1)@Air Conditioning Compressor - Remove - Air Conditioning Compressor Hose Replacement (2H0) Air Conditioning Compressor Hose Replacement (LE2) Air Conditioning Compressor Hose Replacement (LUV)

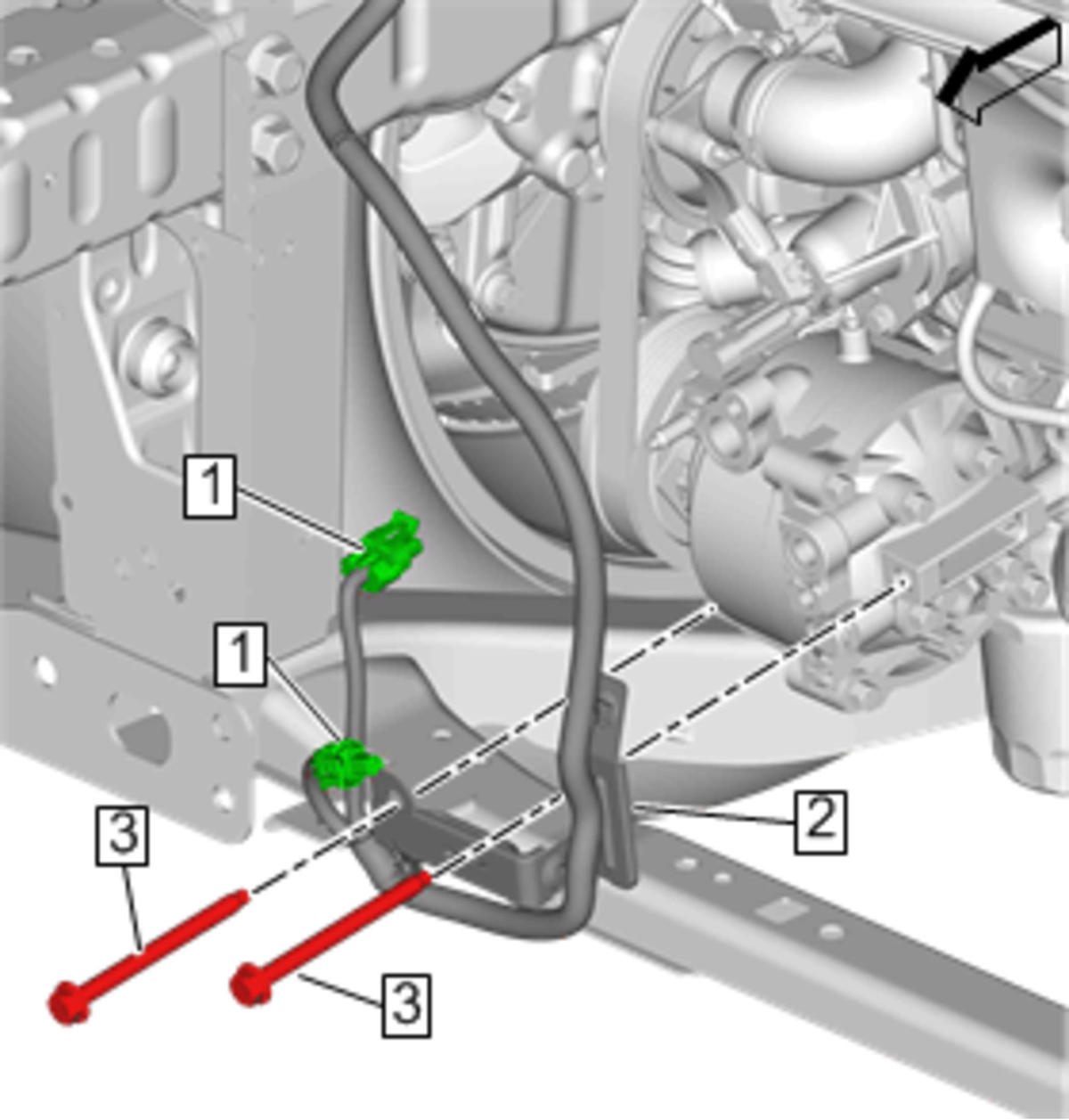

  6. GM4117067

    Electrical Connector(1)[2x] - Disconnect

  7. Air Conditioning Compressor Bolt(3)[2x] - Remove
  8. Engine Wiring Harness Bracket(2) - Remove

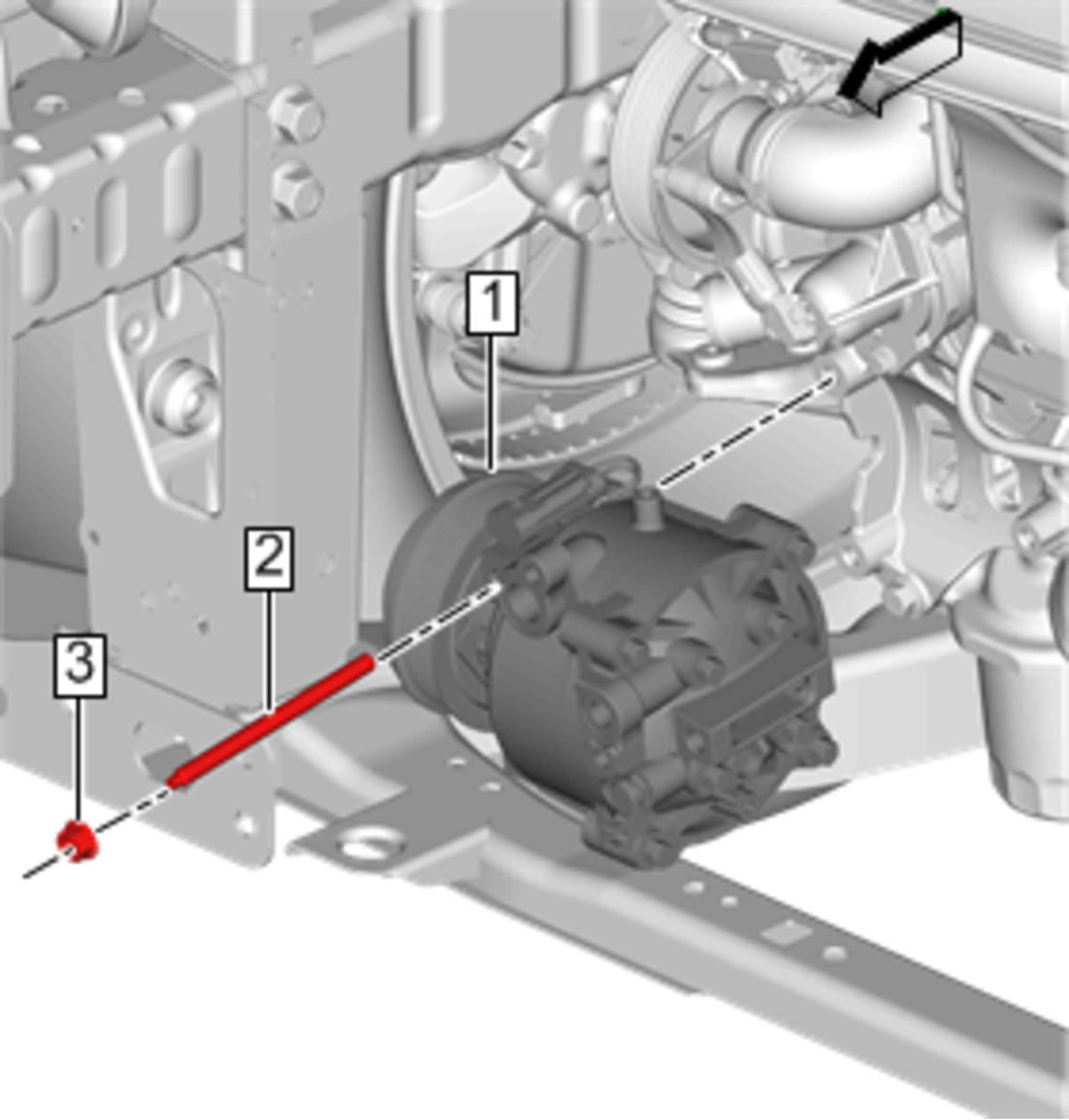

  9. GM4116997

    Air Conditioning Compressor Nut(3) - Remove

  10. Air Conditioning Compressor Stud(3) - Remove
  11. Air Conditioning Compressor(1) - Remove
