Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refrigerant Recovery and Recharging (R-134a)
  2. Air Cleaner Outlet Duct Replacement - Remove

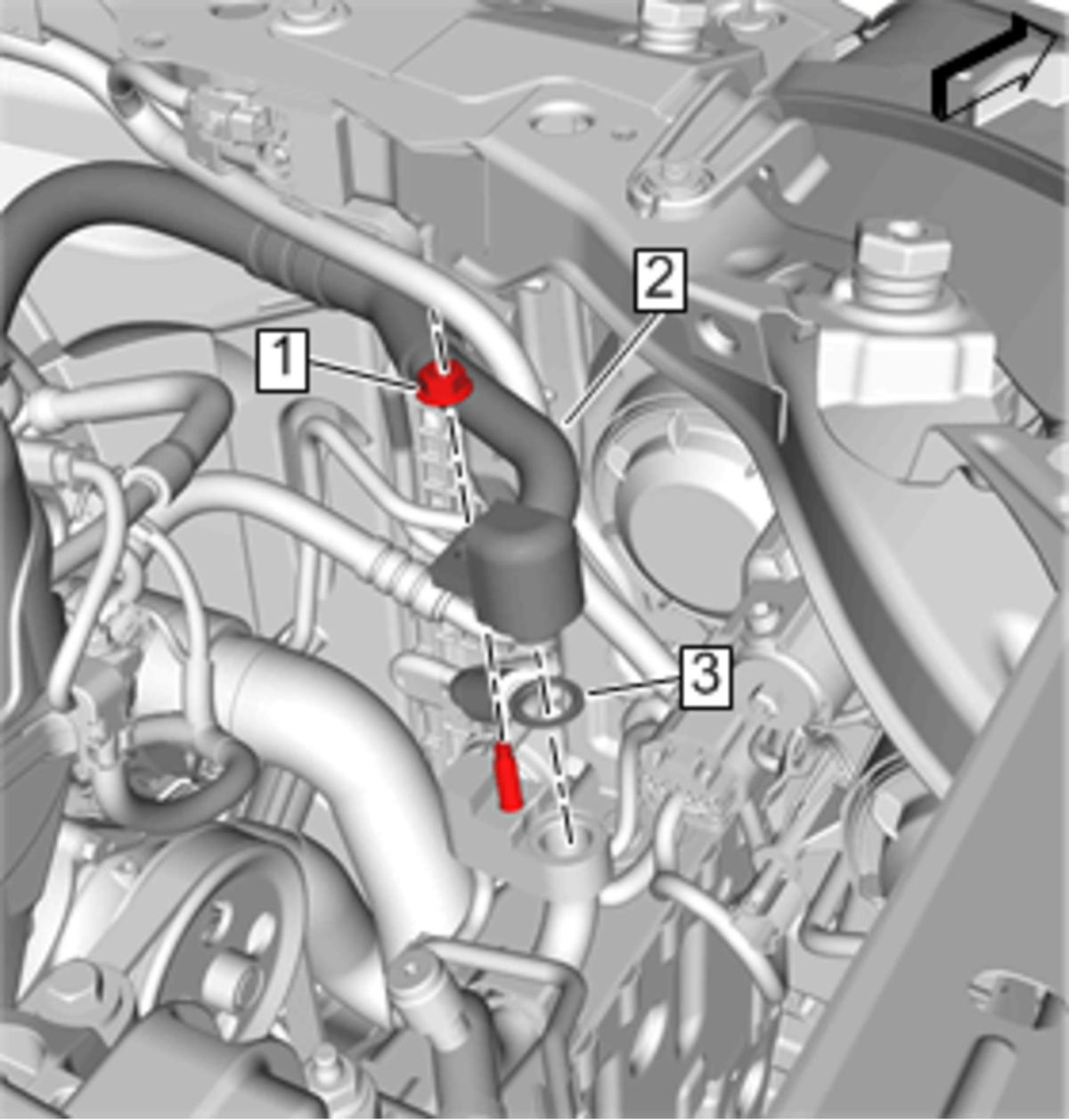

  3. GM4117065

    Air Conditioning Compressor Hose Nut(1) - Remove

  4. Air Conditioning Compressor Hose(2) - Remove
  5. Remove and DISCARD the sealing washer.(3)
  6. GM2790881

    Front Compartment Front Center Insulator Replacement (4) - Remove

  7. GM4116958

    Air Conditioning Compressor Hose Bolt(3) - Remove

  8. Air Conditioning Compressor Hose(1) - Remove
  9. Remove and DISCARD the sealing washer.(2)
  10. Remove the air conditioning compressor hose from the vehicle.
