Intake Air Duct Replacement

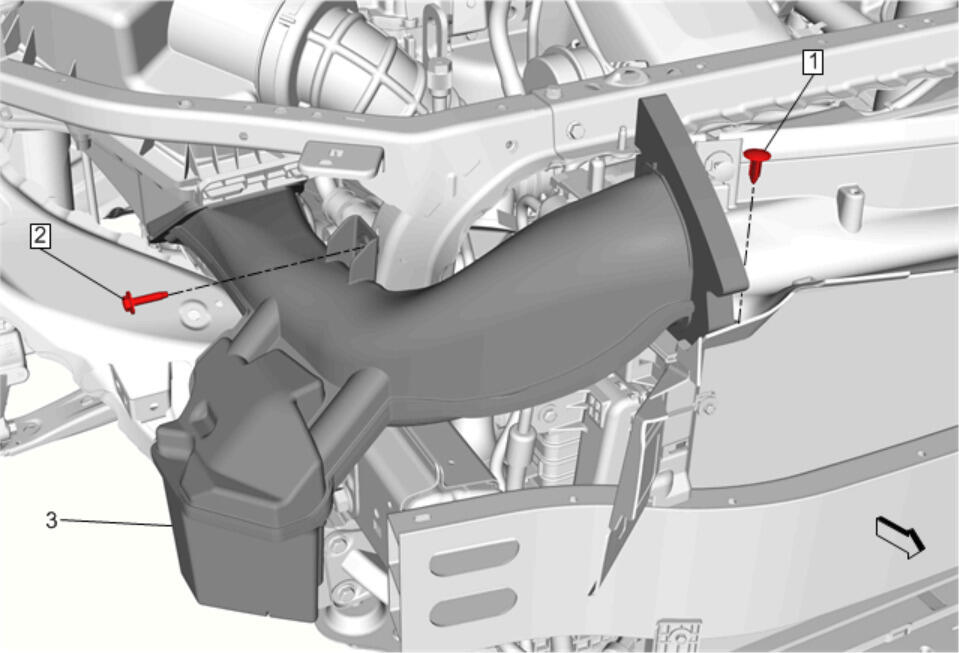

GM4241814
Callout Component Name

Preliminary Procedures

  1. Refer to Headlamp Replacement
  2. Refer to Front Bumper Fascia Replacement
1 Intake Air Duct Retainer
CAUTION:

Refer to Fastener Caution .
2 Intake Air Duct Bolt
Tighten
9 N.m (80 lb in)
3 Intake Air Duct
