Installation Procedure

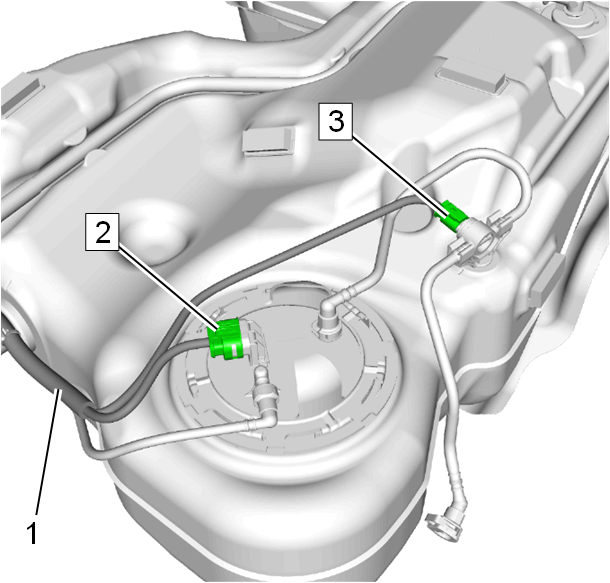

  1. GM4589353

    Fuel Tank Fuel Pump Module Wiring Harness (1) - Install

  2. Connect the electrical connector:
    1. Fuel Tank Fuel Pump Module (2)
    2. Fuel Pressure Sensor (3)
  3. Install the fuel tank - Refer to Fuel Tank Replacement (AWD)  or Fuel Tank Replacement (FWD)
  4. Connect the battery negative cable - Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG)
