Fuel Pump Cover Replacement

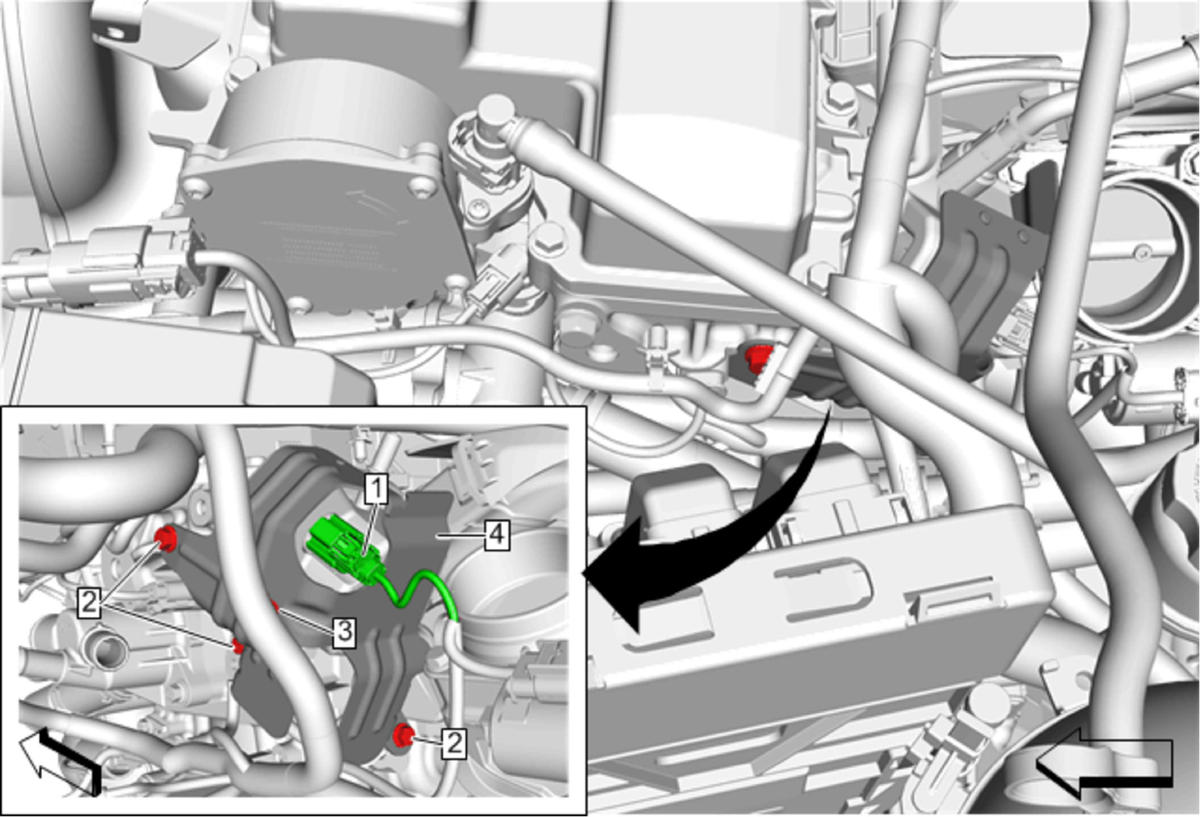

GM4235433
Callout Component Name

Preliminary Procedures

  1. Refer to Charge Air Cooler Outlet Air Tube Replacement
  2. Refer to Intake Manifold Cover Replacement
1 Electrical Connector
Procedure
Disconnect the electrical connector.
2 Fuel Pump Cover Fastener[3x]
CAUTION:

Refer to Fastener Caution .


Procedure
10 N.m (89 lb in)
3 Engine Wiring Harness Retainer
4 Fuel Pump Cover
