Multifunction Power Supply Converter Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

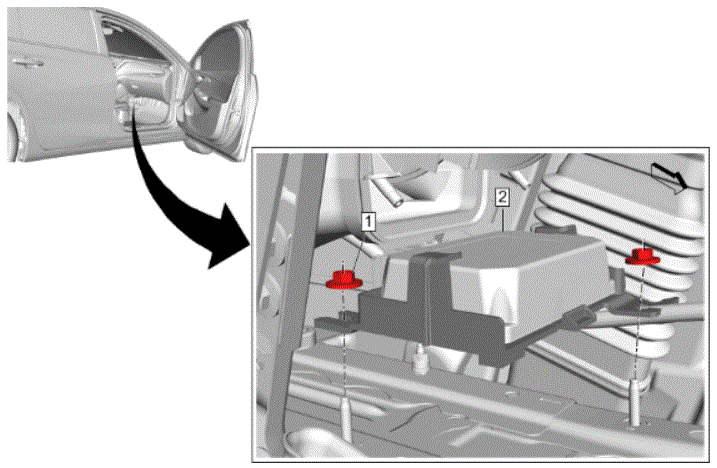

Callout	Component Name
Preliminary Procedures Floor Rear Air Outlet Duct Adapter Replacement (Left Side) , or Floor Rear Air Outlet Duct Adapter Replacement (Right Side) Reposition the body control module bracket. Body Control Module Bracket Replacement
1	Multifunction Power Supply Converter Bracket Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Multifunction Power Supply Converter Bracket Procedure Disconnect all electrical connectors. Transfer components as necessary.
