Engine Wiring Harness Fuse Block Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

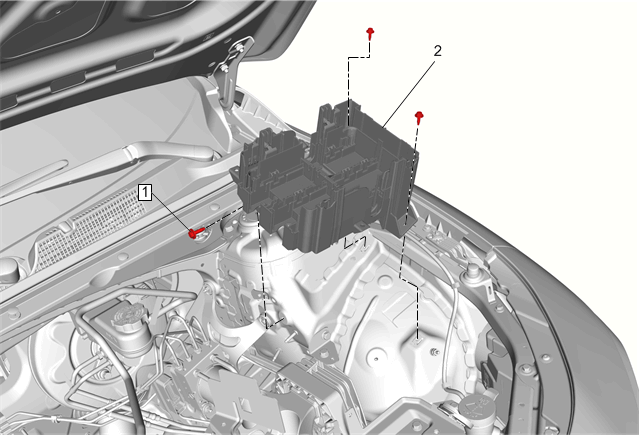

Callout	Component Name
Preliminary Procedures Engine Wiring Harness Junction Block Replacement (LTG) , or Engine Wiring Harness Junction Block Replacement (LGX) Reposition the wiring harness connectors and retainers.
1	Engine Wiring Harness Fuse Block Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Engine Wiring Harness Fuse Block Bracket

Callout

Component Name

Preliminary Procedures

Engine Wiring Harness Fuse Block Bracket Bolt [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Engine Wiring Harness Fuse Block Bracket
