Rear Side Door Window Frame Front Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

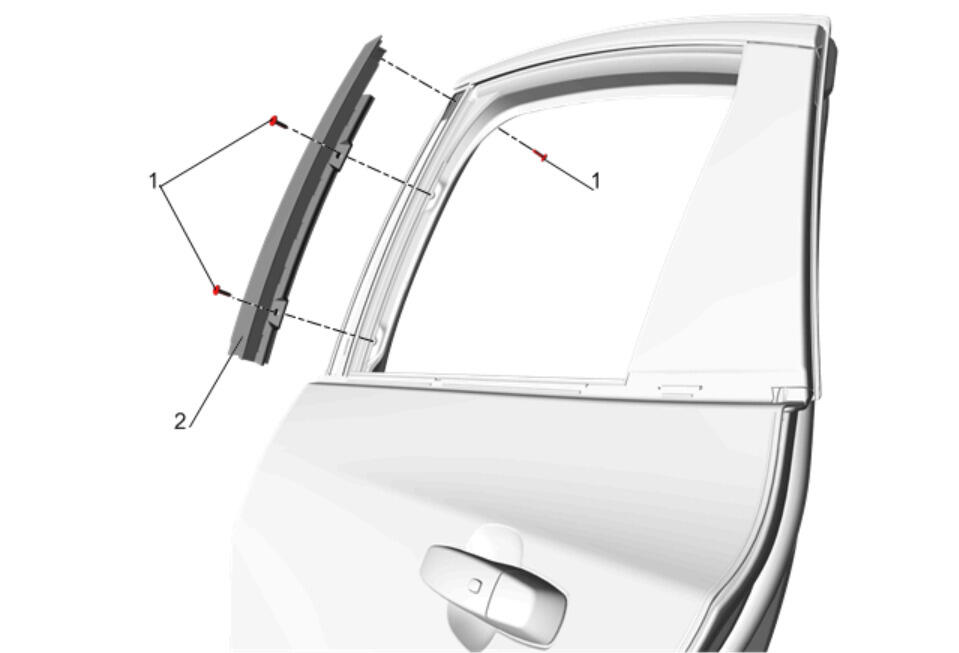

Callout	Component Name
Preliminary Procedure  Rear Side Door Window Belt Reveal Molding Replacement
1	Rear Side Door Window Frame Applique Screw [3x] CAUTION: Refer to Fastener Caution . Procedure  Pull weatherstrip away from the applique to access the screws. Tighten  2.5 N.m (22 lb in)
2	Rear Side Door Window Frame Front Applique
