Rearview Driver Information Camera Replacement

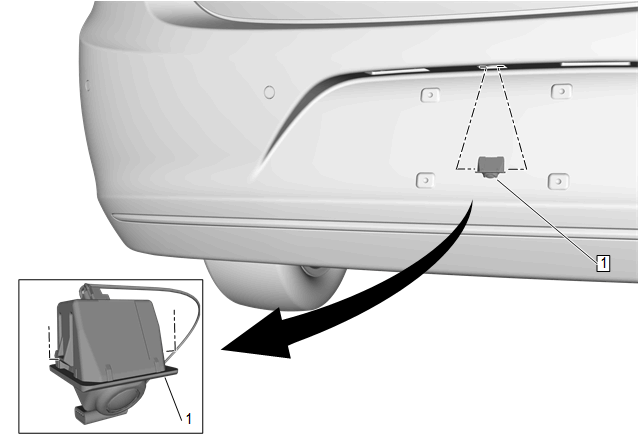

GM4973960
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Replacement
1 Rearview Driver Information Camera

Procedure

  1. Using a plastic trim type tool, push the retainer clip inward and rotate the camera downward.
  2. Disconnect the electrical connector.
