Home >> Buick >> 2017 >> Verano Base, Gas >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Moveable Window Wiring Schematics >> Rear Windows

Rear Windows

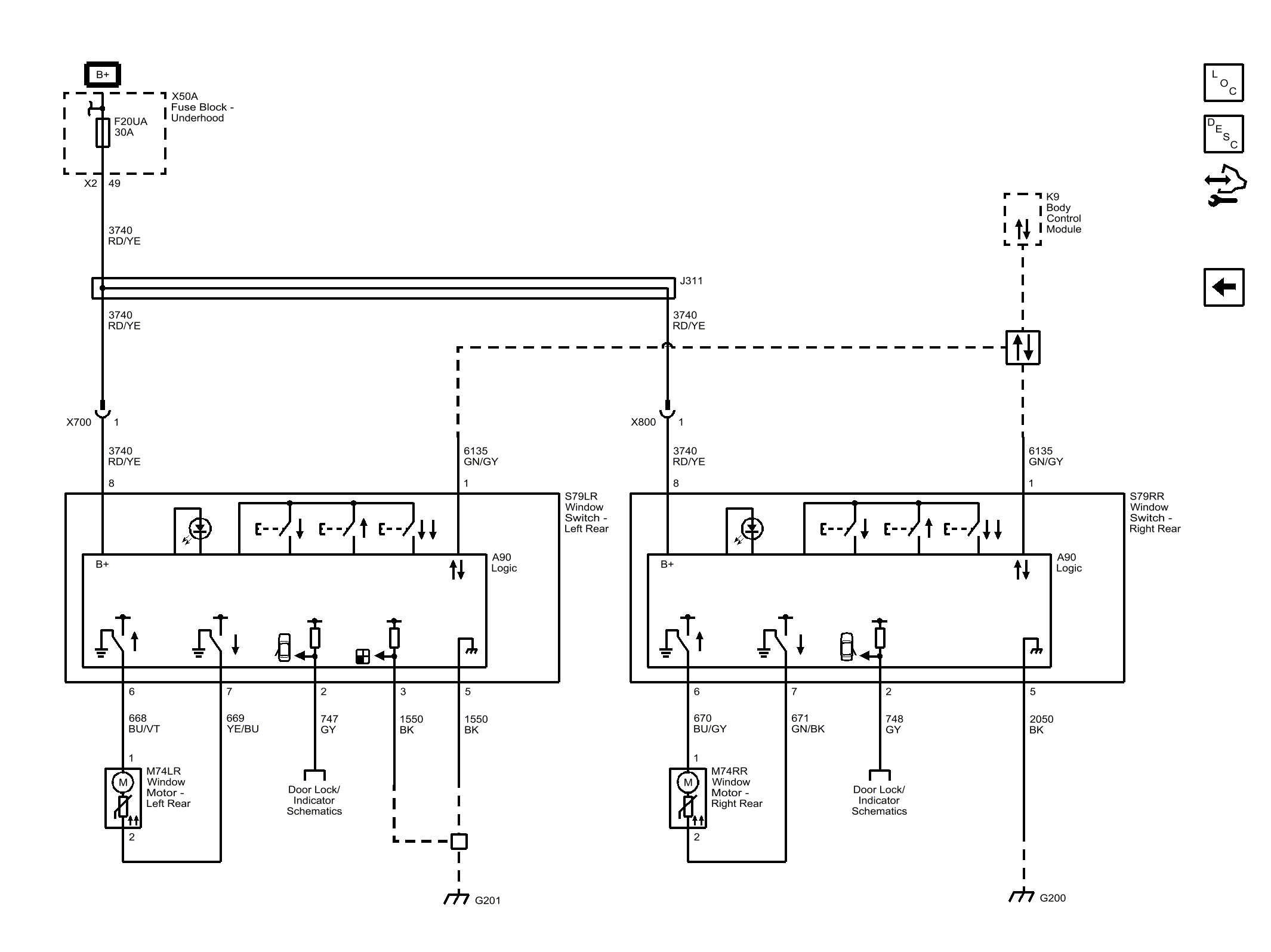

Fig 1: Rear Windows

GM4499248

Courtesy of GENERAL MOTORS COMPANY
