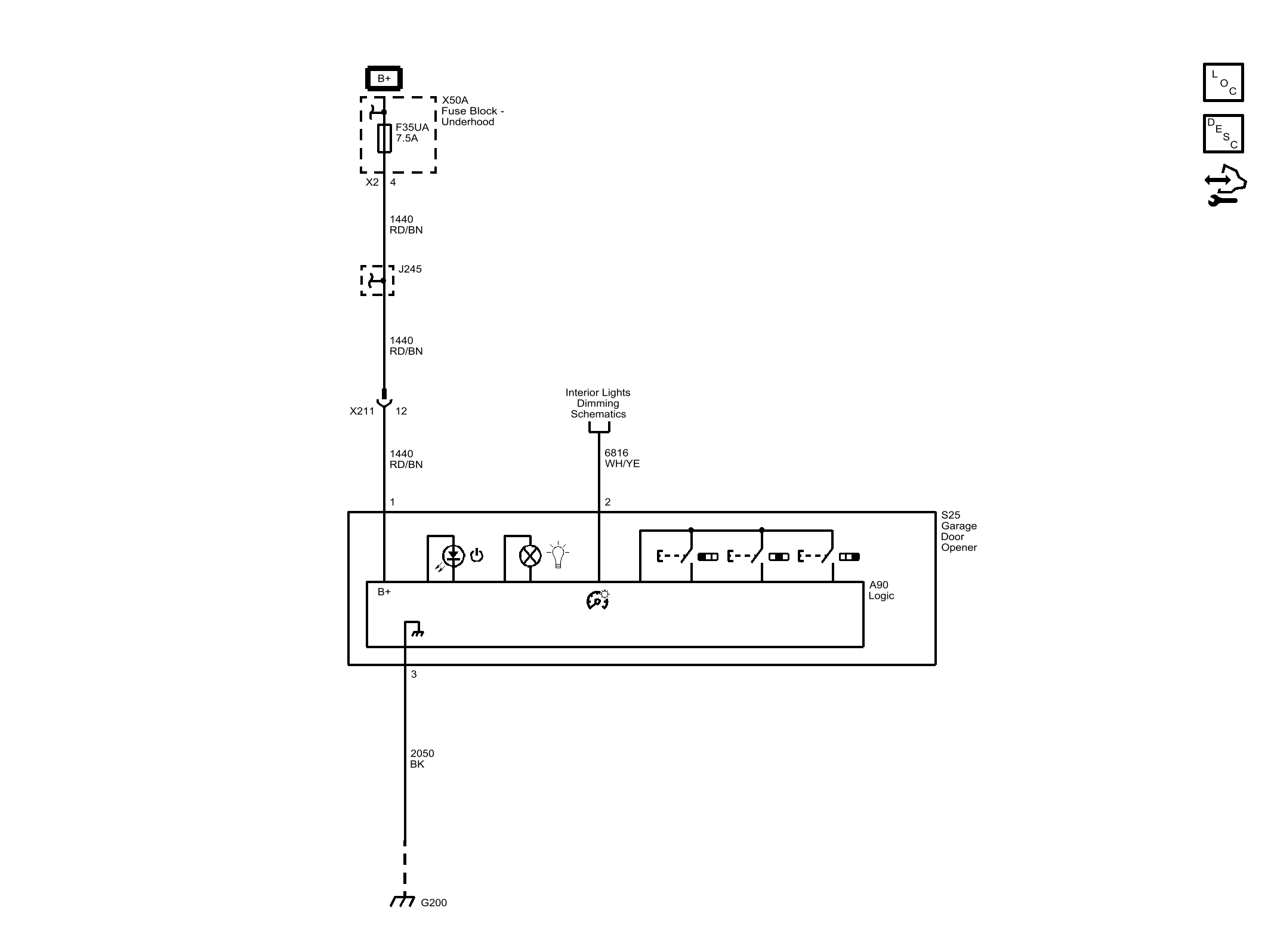

Home >> Buick >> 2017 >> Verano Base, Gas >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Garage Door Opener
