Steering Wheel Secondary/Configurable Controls

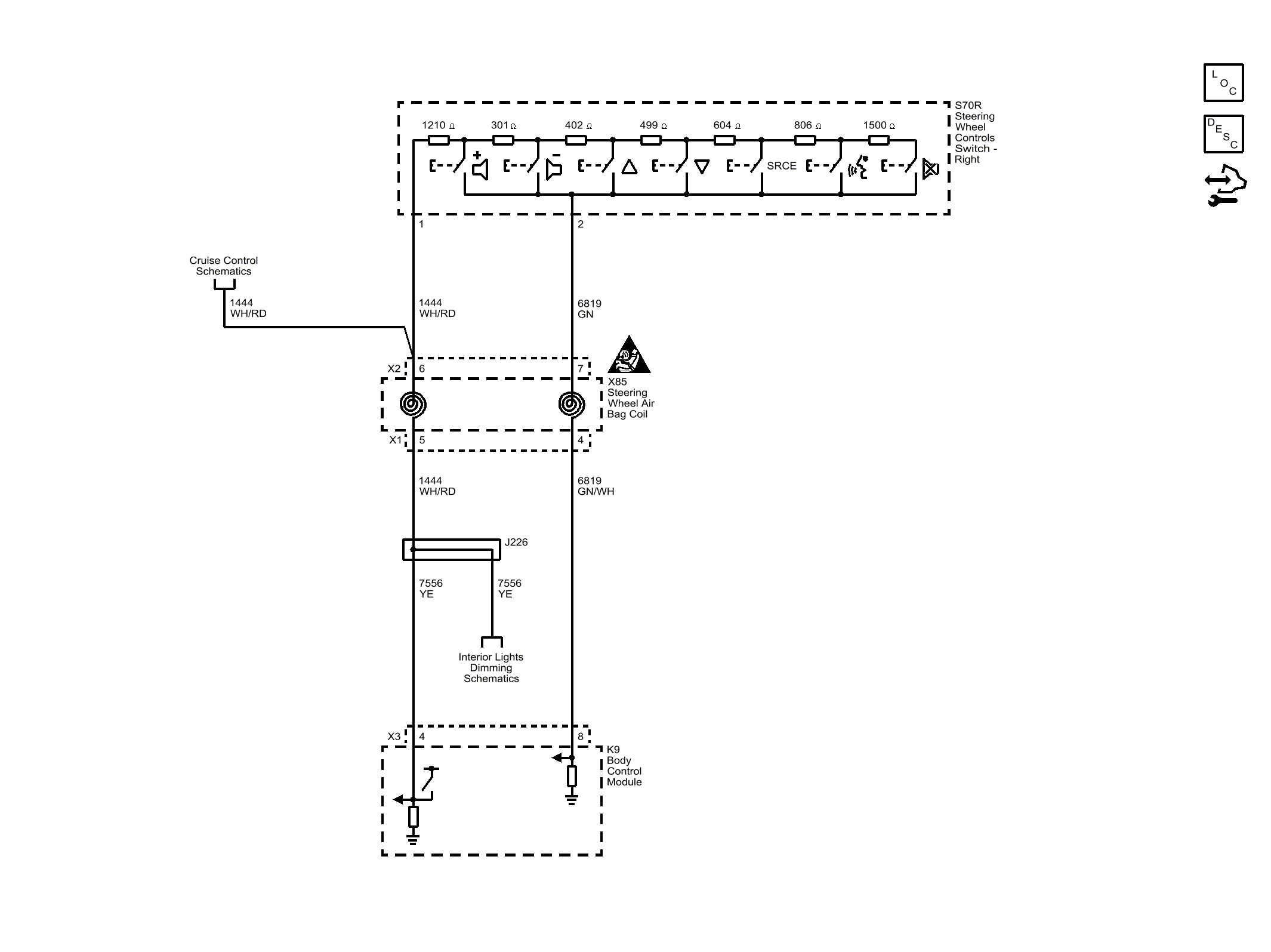

Fig 1: Steering Wheel Secondary/Configurable Controls

GM4499544

Courtesy of GENERAL MOTORS COMPANY
