Radio Control Switch Replacement (Grand Sport)

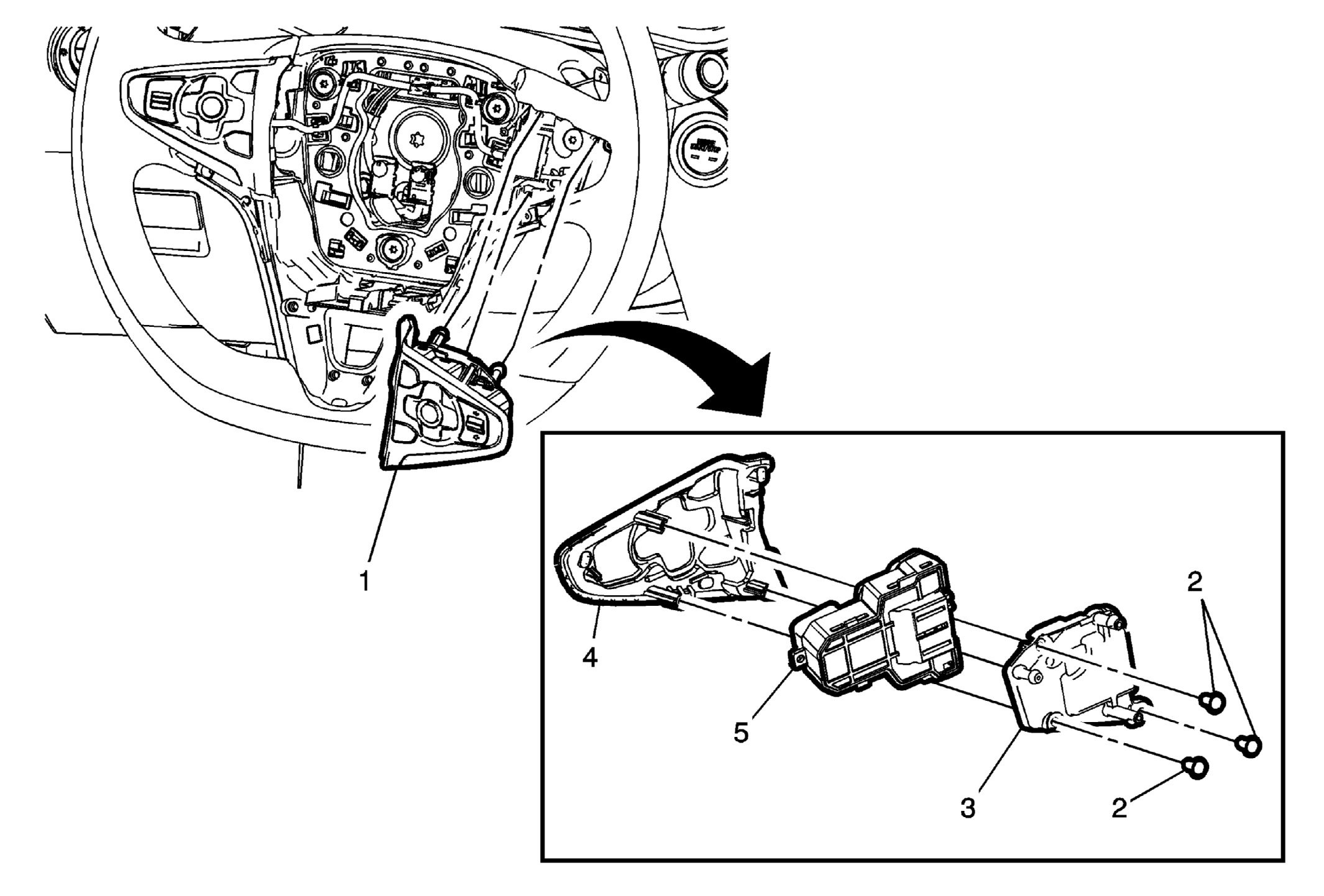

Fig 1: Radio Control Switch (Grand Sport)
GM3432803Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Radio Control Switch Assembly

Procedure

  1. Use the appropriate tool to gently release the retaining tabs on the switch assembly bezel.
  2. Disconnect the electrical connection.
NOTE:

Gently release tabs one by one, using care to avoid snapping the tab off.
2 Steering Wheel Switch Bracket Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .
3 Steering Wheel Switch Bracket
4 Steering Wheel Switch Bezel
5 Radio Control Switch
