Left Rear of Engine Components (LUK)

Items
1: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust (LEA)B23E Camshaft Position Sensor - Exhaust (LTD/LDK)B23E Camshaft Position Sensor - Exhaust (LTG)
2: T8D Ignition Coil 4 (except LTG or LEA) T8D Ignition Coil 4 (LDK)T8D Ignition Coil 4 (LEA)T8D Ignition Coil 4 (LTG)
3: T8C Ignition Coil 3 (except LTG, LEA or LLU) T8C Ignition Coil 3 (LDK)T8C Ignition Coil 3 (LEA)T8C Ignition Coil 3 (LTG)
4: T8B Ignition Coil 2 (except LTG, LEA or LLU) T8B Ignition Coil 2 (LDK)T8B Ignition Coil 2 (LEA)T8B Ignition Coil 2 (LTG)
5: T8A Ignition Coil 1 T8A Ignition Coil 1 (LDK)T8A Ignition Coil 1 (LEA)T8A Ignition Coil 1 (LTG)
6: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LDK)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LEA)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG)
7: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LDK)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LEA)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG)
8: Q29C Secondary Air Injection Solenoid Valve - Cylinder 1/2
9: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LEA)B52A Heated Oxygen Sensor 1 (LLU)B52A Heated Oxygen Sensor 1 (LTD/LDK)B52A Heated Oxygen Sensor 1 (LTG)
10: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LTD/LDK)B52B Heated Oxygen Sensor 2 (LLU)B52B Heated Oxygen Sensor 2 (LTG)
11: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LDK)Q12 Evaporative Emission Purge Solenoid Valve (LEA)Q12 Evaporative Emission Purge Solenoid Valve (LLU)Q12 Evaporative Emission Purge Solenoid Valve (LTG)
12: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LDK)B34 Engine Coolant Temperature Sensor (LEA)B34 Engine Coolant Temperature Sensor (LLU)B34 Engine Coolant Temperature Sensor (LTG)

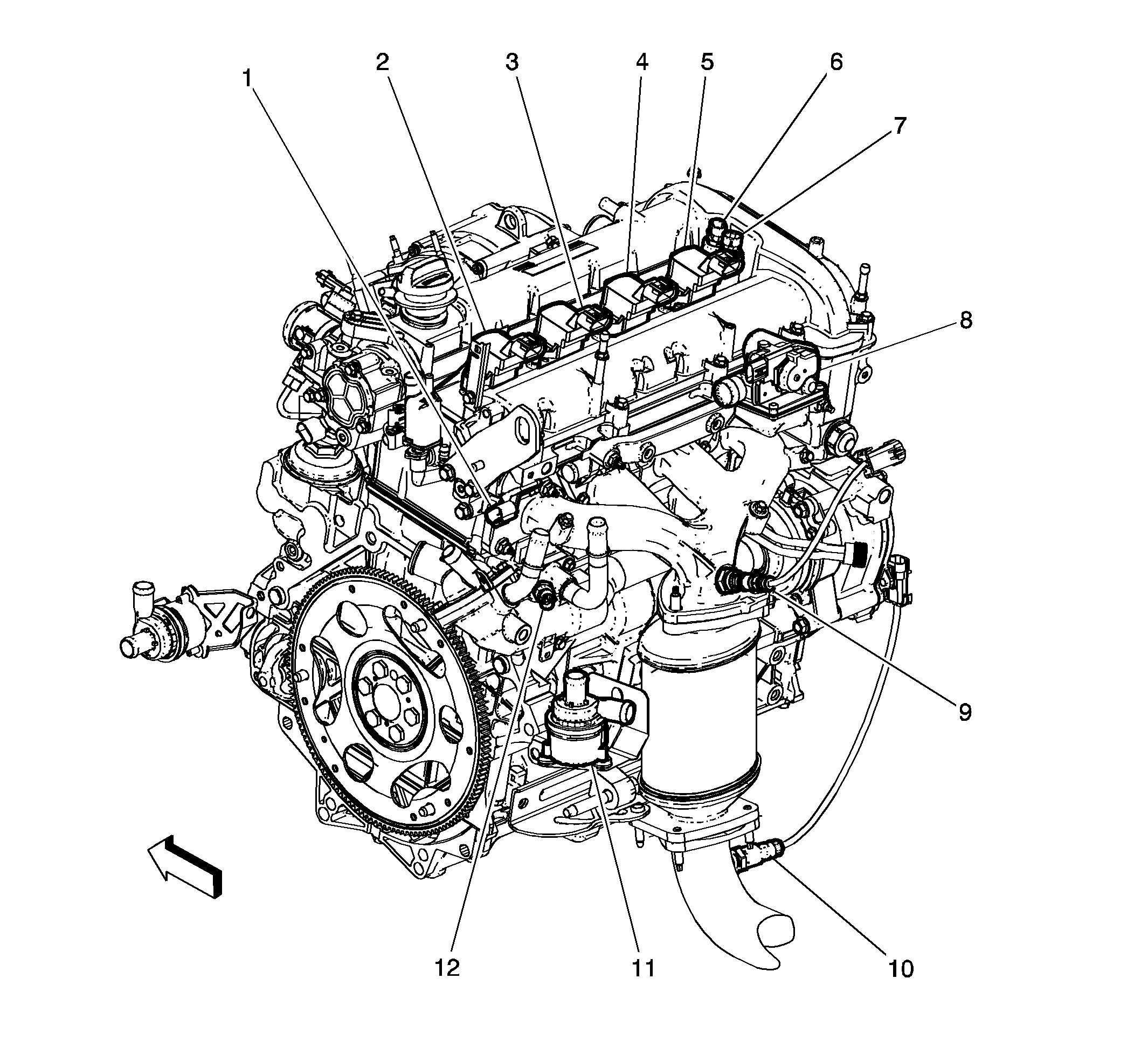

Fig 1: Left Rear of Engine Components (LUK)

Courtesy of GENERAL MOTORS COMPANY
