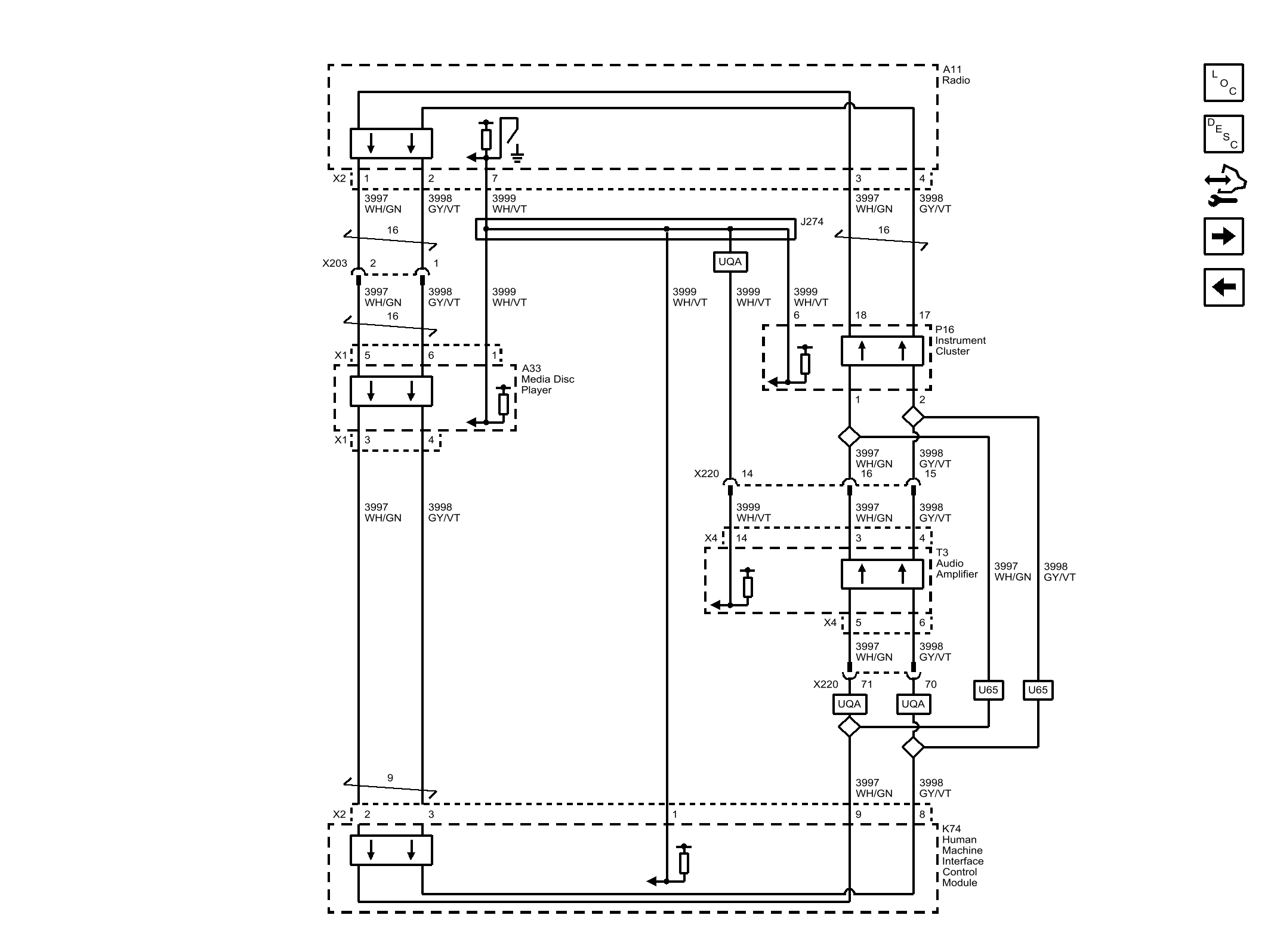

Home >> Buick >> 2017 >> Regal GS, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Most 50 Bus (except CZ2)
