Fuel Feed Front Pipe Replacement

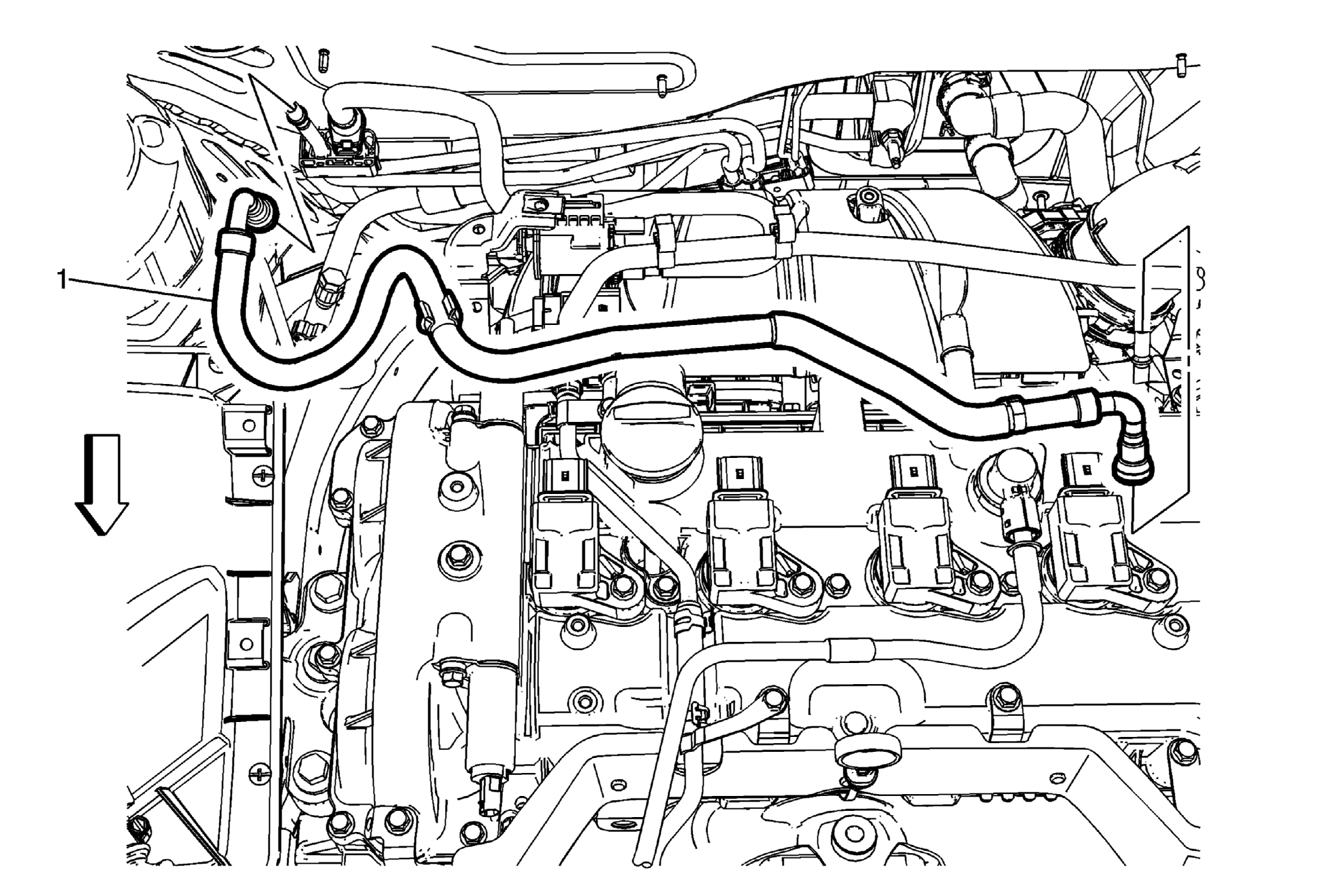

Fig 1: Fuel Feed Front Pipe (LTG)
GM2868547Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Relieve the system fuel pressure. Refer to Fuel Pressure Relief .
1 Fuel Feed Front Pipe

Procedure

  1. Disconnect the fuel feed front pipe from the retainers.
  2. Disconnect the fuel feed front pipe from the pump and line. Refer to Metal Collar Quick Connect Fitting Service .
