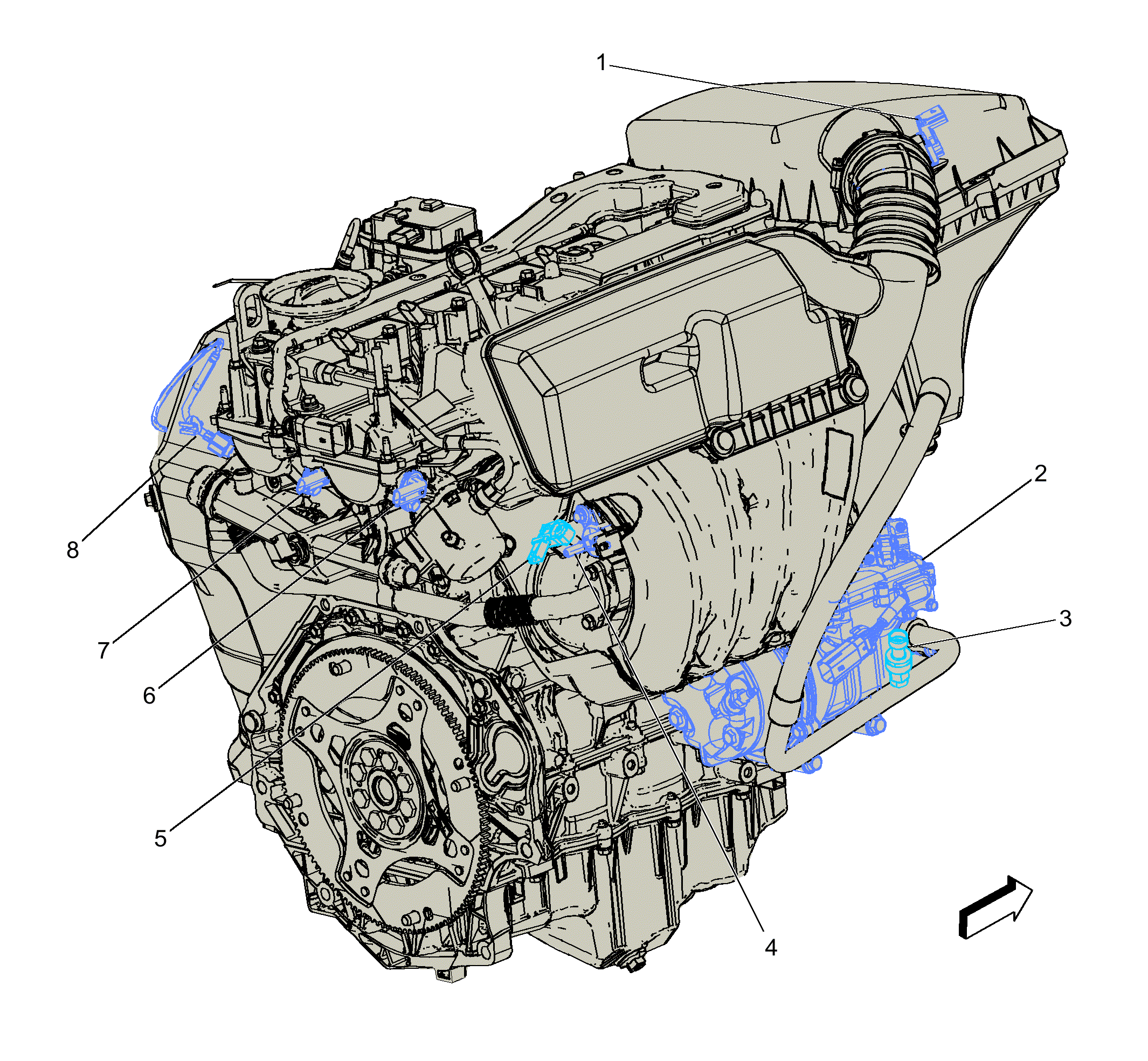

Right Rear of the Engine Components (LKN)
Right Rear of the Engine Components (LKN)
| Items |
|---|
| 1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 2. G1 A/C Compressor G1 A/C Compressor (LKN) |
| 3. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor (HP4)B1 A/C Refrigerant Pressure Sensor (LHN/MNH) |
| 4. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 5. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LKN) |
| 6. B23F Camshaft Position Sensor - Intake (LFV/LKN/LTG) B23F Camshaft Position Sensor - Intake (LKN)B23F Camshaft Position Sensor - Intake (LTG)B23F Camshaft Position Sensor - Intake (LTG/LKN) |
| 7. B23E Camshaft Position Sensor - Exhaust (LFV/LKN/LTG) B23E Camshaft Position Sensor - Exhaust (LFV)B23E Camshaft Position Sensor - Exhaust (LKN)B23E Camshaft Position Sensor - Exhaust (LTG/LKN) |
| 8. B130B Exhaust Gas Recirculation Temperature Sensor 2 (LKN) B130B Exhaust Gas Recirculation Temperature Sensor 2 (LKN) |
