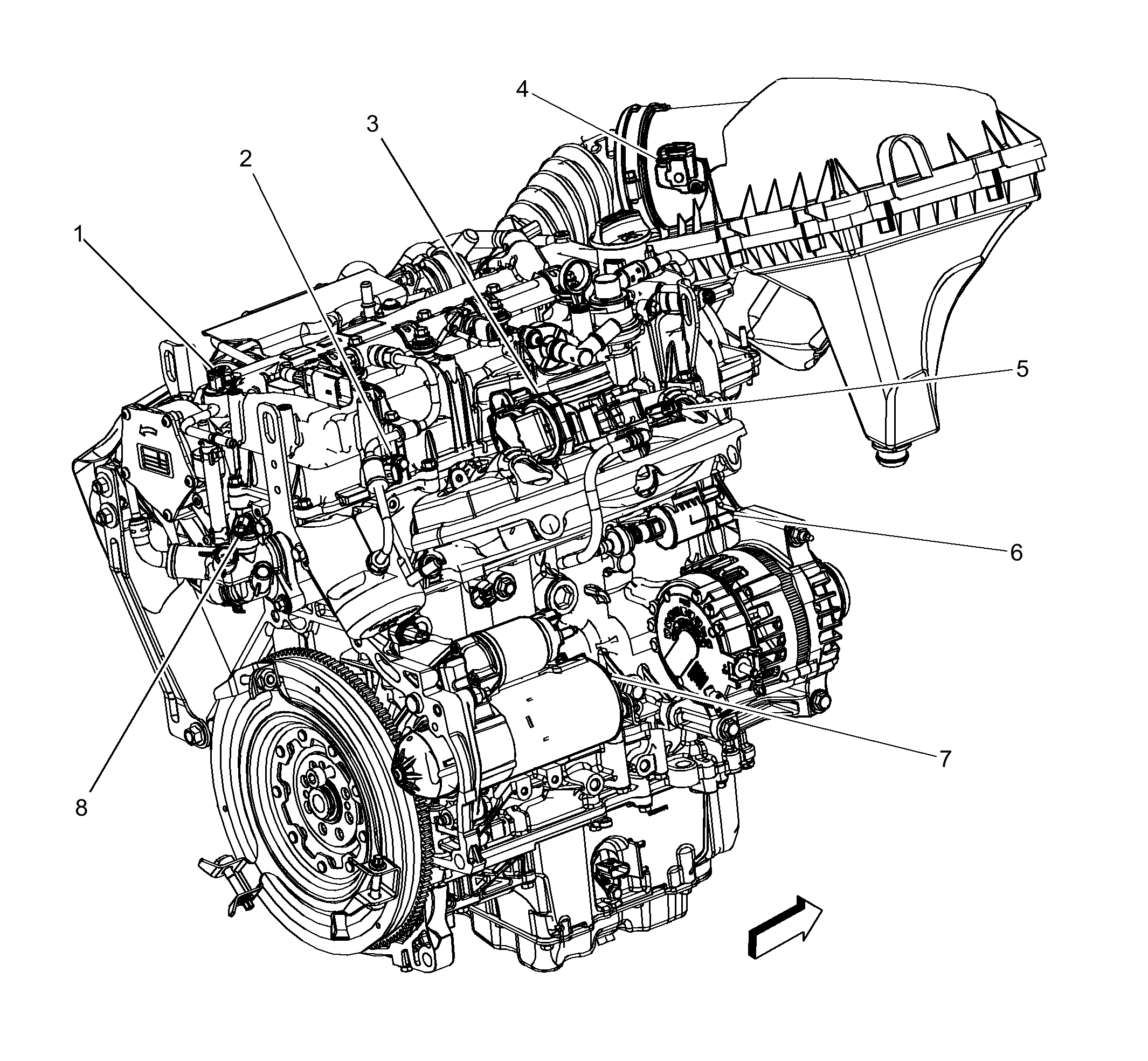

Right Rear of the Engine Components (LFV)
Right Rear of the Engine Components (LFV)
| Items |
|---|
| 1. B23E Camshaft Position Sensor - Exhaust (LFV/LKN/LTG) B23E Camshaft Position Sensor - Exhaust (LFV) |
| 2. B23F Camshaft Position Sensor - Intake (LFV/LKN/LTG) B23F Camshaft Position Sensor - Intake (LFV) |
| 3. Q38 Throttle Body Q38 Throttle Body (LKN)Q38 Throttle Body (LTG) |
| 4. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 5. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LFV) |
| 6. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 7. M64 Starter Motor M64 Starter Motor X1 (LFV+KL9)M64 Starter Motor X1 (LFV-KL9) |
| 8. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LFV) |
