Installation Procedure

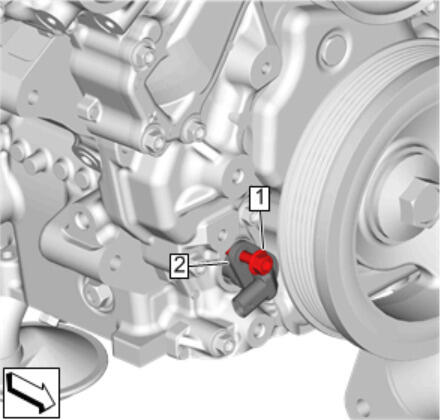

    Fig 1: Oil Pump Flow Control Solenoid Valve Harness Connector
    GM4848114Courtesy of GENERAL MOTORS COMPANY
  1. Guide the oil pump flow control solenoid valve harness through the hole in the engine block and seat the harness connector (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the oil pump flow control solenoid valve harness bolt (1) and tighten to 15 (11 lb ft).

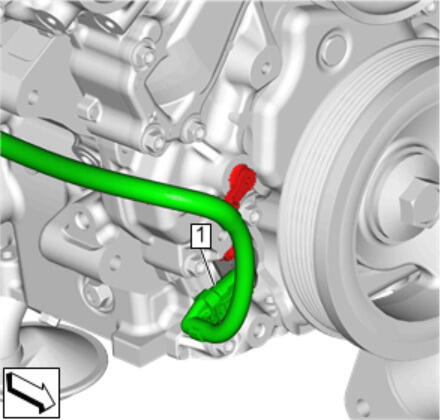

    3. Fig 2: Engine Wiring Harness Electrical Connector
    GM4848113Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector (1) to the oil pump flow control solenoid valve harness connector.

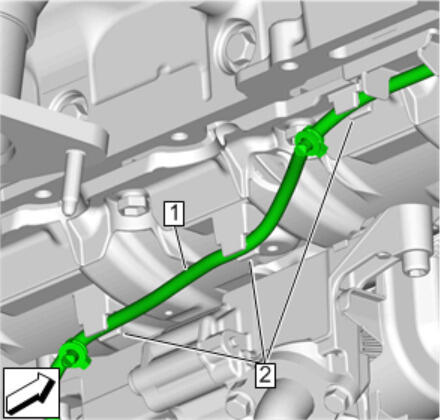

    4. Fig 3: Oil Pump Flow Control Solenoid Valve Harness
    GM4848112Courtesy of GENERAL MOTORS COMPANY
  4. Install the oil pump flow control solenoid valve harness (1) to the crankshaft oil deflector retainers (2).

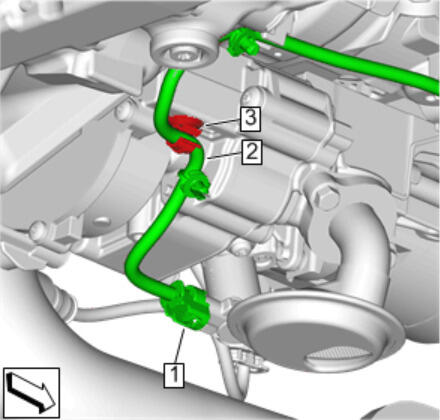

    5. Fig 4: Oil Pump Flow Control Solenoid Valve Harness
    GM4848111Courtesy of GENERAL MOTORS COMPANY
  5. Install the oil pump flow control solenoid valve harness (2) to the retainer (3).
  6. Connect the oil pump flow control solenoid valve harness electrical connector (1) to the oil pump flow control solenoid valve.
  7. Oil Pan - Install - Oil Pan Replacement (AWD)Oil Pan Replacement (FWD)
