Fuel Tank Fuel Pump Module Wiring Harness Replacement (FWD)
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Gasoline/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement (FWD) Refer to Safety Glasses Warning . |
|

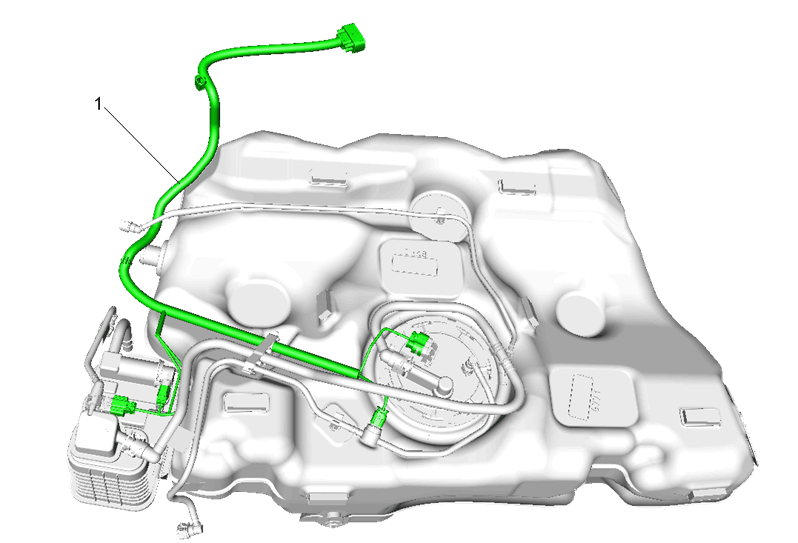

| 1 | Fuel Tank Fuel Pump Module Wiring Harness Procedure Disconnect the wiring harness from the evaporative emission canister and fuel tank fuel pump module and fuel pressure sensor and remove from retainer.
NOTE:
Typical wiring harness shown, depending on option content the harness may look different. |
