Fuel Tank Fuel Pump Module Wiring Harness Replacement (AWD)
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Gasoline/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement (AWD) Refer to Safety Glasses Warning . |
|

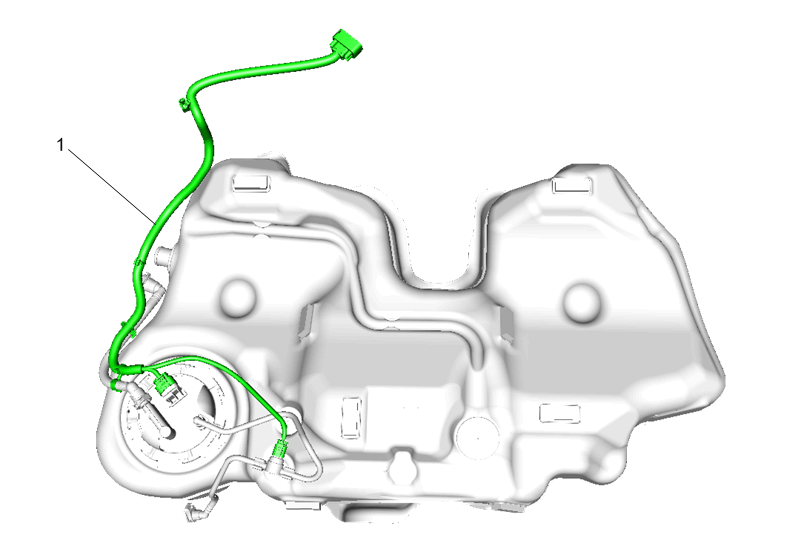

| 1 | Fuel Tank Fuel Pump Module Wiring Harness Procedure Disconnect the wiring harness from the fuel tank fuel pump module and fuel pressure sensor and remove from retainer.
NOTE:
Typical wiring harness shown, depending on option content the harness may look different. |
