Installation Procedure

    Fig 1: Air Cleaner Outlet Duct
    GM4455156Courtesy of GENERAL MOTORS COMPANY
  1. Air Cleaner Outlet Duct 1 - Install

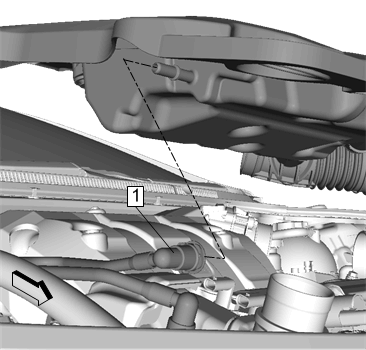

    2. Fig 2: Positive Crankcase Ventilation Tube
    GM4455155Courtesy of GENERAL MOTORS COMPANY
  2. Positive Crankcase Ventilation Tube 1 - Connect - Plastic Collar Quick Connect Fitting Service

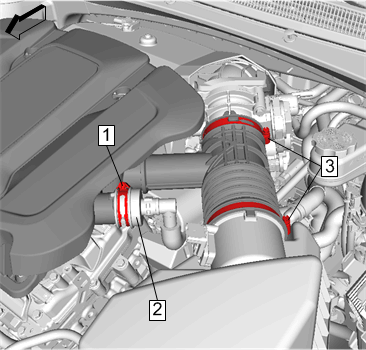

    3. Fig 3: Positive Crankcase Ventilation Tube And Air Cleaner Outlet Duct Clamp
    GM4455153Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Air Cleaner Outlet Duct Clamp 3 - Install [2x] 4 N.m (35 lb in)
  4. Positive Crankcase Ventilation Tube 2 - Install
  5. Positive Crankcase Ventilation Tube Clamp 1 - Install 4 N.m (35 lb in)

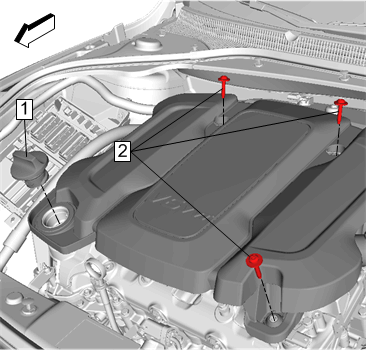

    6. Fig 4: Oil Filler Cap And Air Cleaner Resonator Bolt
    GM4455149Courtesy of GENERAL MOTORS COMPANY
  6. Air Cleaner Resonator Bolt (2) - Install [3x] 9 N.m (80 lb in)
  7. Oil Filler Cap (1) - Install
