Multifunction Power Supply Converter Bracket Replacement

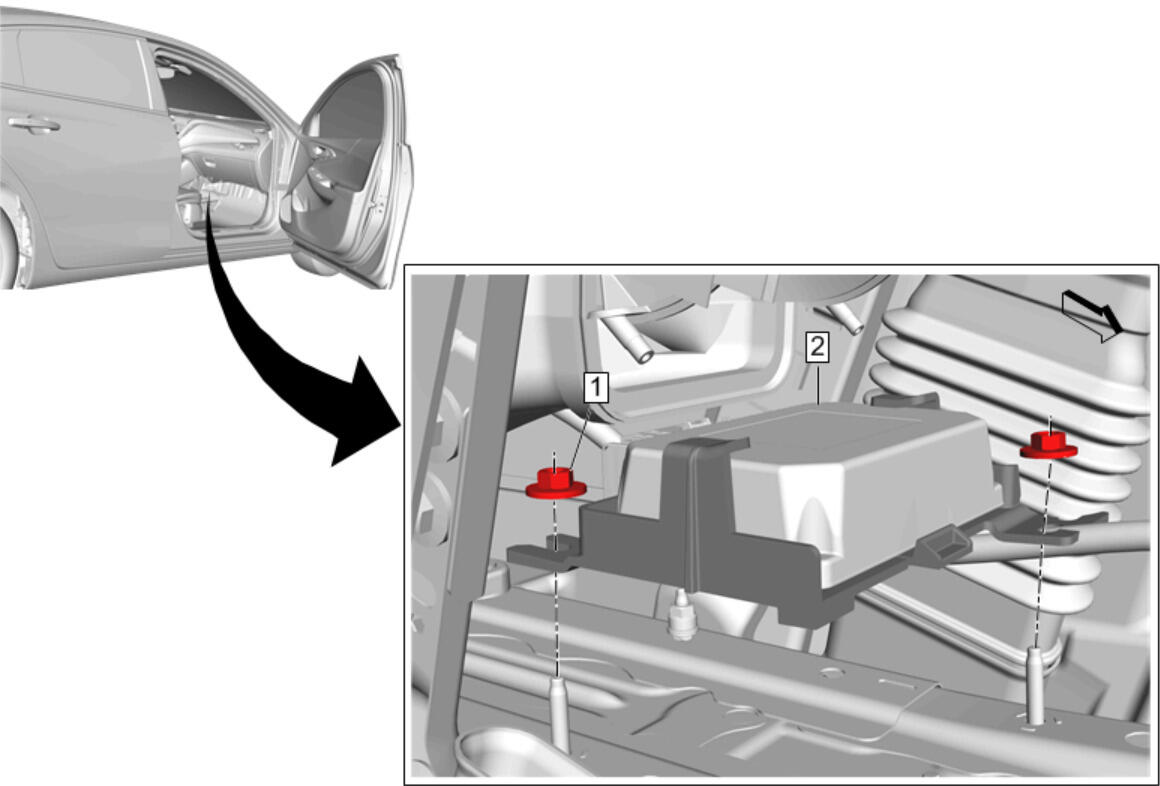

Fig 1: Multifunction Power Supply Converter Bracket
GM4256575Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the left side Floor Rear Air Outlet Duct Adapter.Refer to Floor Rear Air Outlet Duct Adapter Replacement (Left)Floor Rear Air Outlet Duct Adapter Replacement (Right)
1 Multifunction Power Supply Converter Bracket Nut
CAUTION:

Refer to Fastener Caution .


tighten
6 N.m (53 lb in)
2 Multifunction Power Supply Converter Bracket

Procedure

  1. Disconnect all electrical connectors.
  2. Transfer components as necessary.
