Front Compartment Splash Shield Replacement

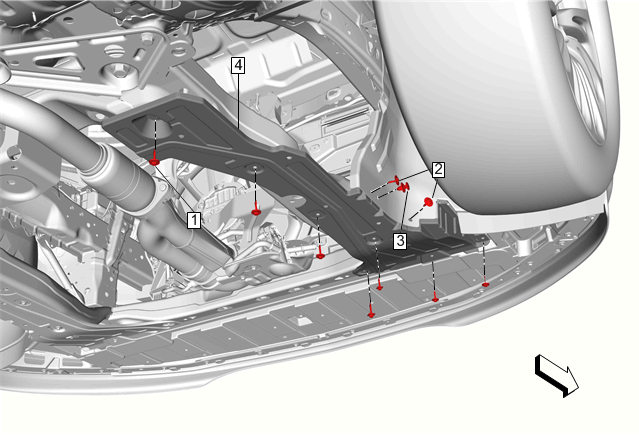

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Front Compartment Splash Shield Bolt [7x]
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Front Wheelhouse Liner Screw [2x] Tighten 2.5 N.m (22 lb in) |
| 3 | Front Compartment Splash Shield Retainer |
| 4 | Front Compartment Splash Shield |
