Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

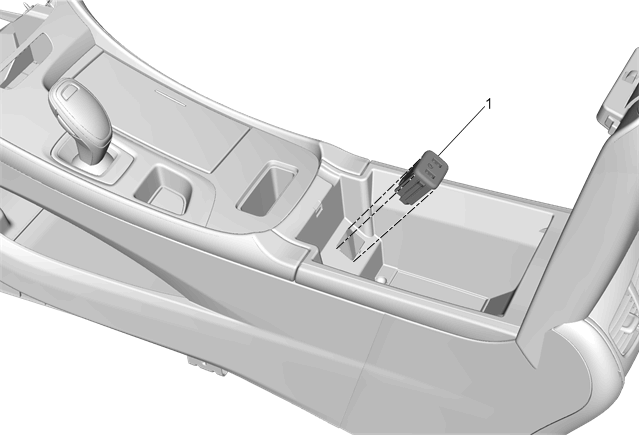

Fig 1: Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle
GM4323039Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle

Procedure

  1. Depress the tabs on the receptacle to remove.
  2. Disconnect the electrical connectors.
