Power Steering Wiring Schematics
>>
Power Steering
Power Steering

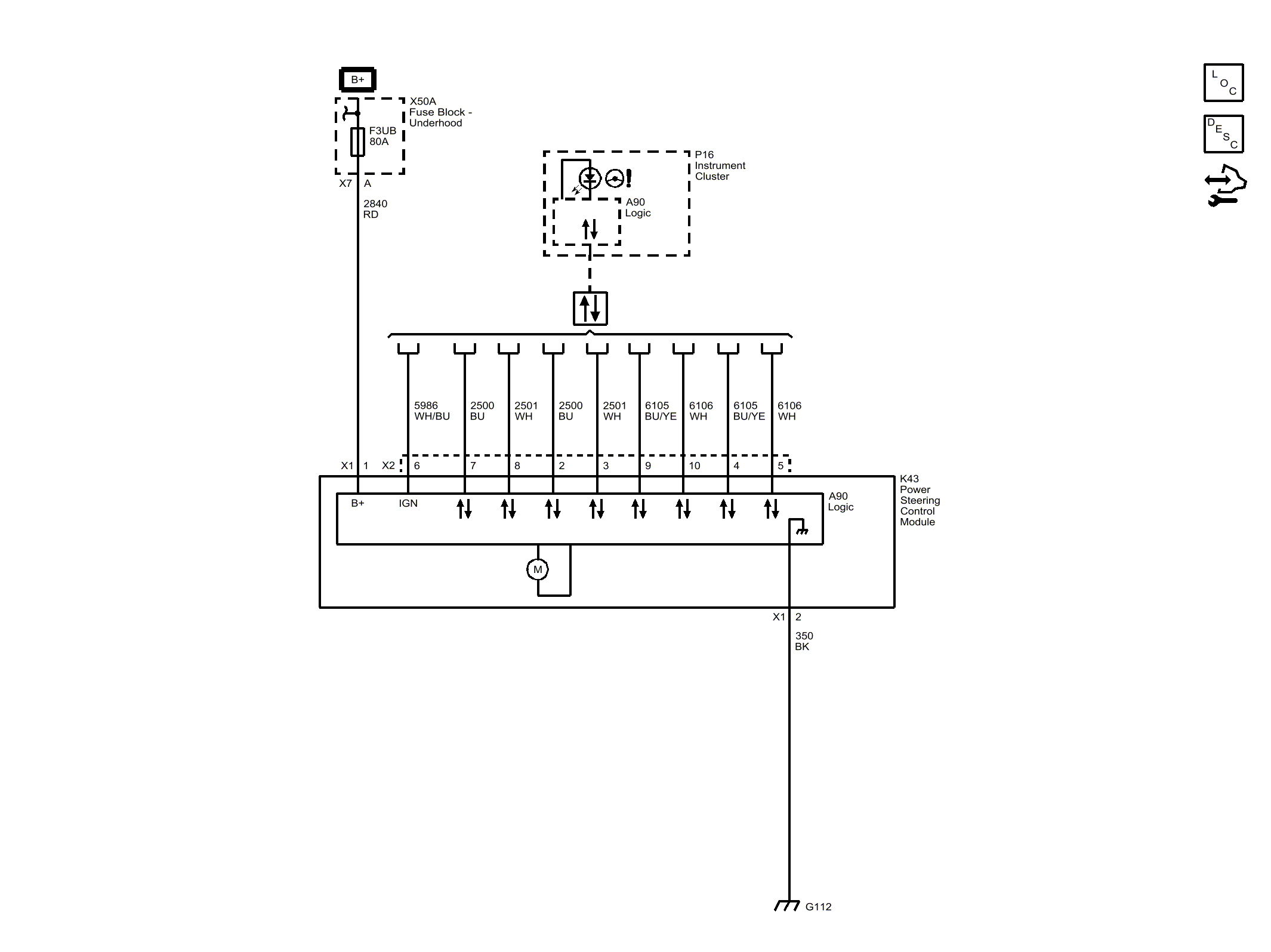

Fig 1: Power Steering
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
