Installation Procedure

  1. If replacing the fuel feed pipe with a new one, install the fuel pressure sensor with a new O-Ring seal. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe
    2. Fig 1: Fuel Pressure Sensor Electrical Connector, Fuel Feed Front Pipe And Retainers
    GM3993227Courtesy of GENERAL MOTORS COMPANY
  2. Connect the fuel feed front pipe (2) and install to retainers (3). Refer to Plastic Collar Quick Connect Fitting Service
  3. Connect the fuel pressure sensor electrical connector. (1)

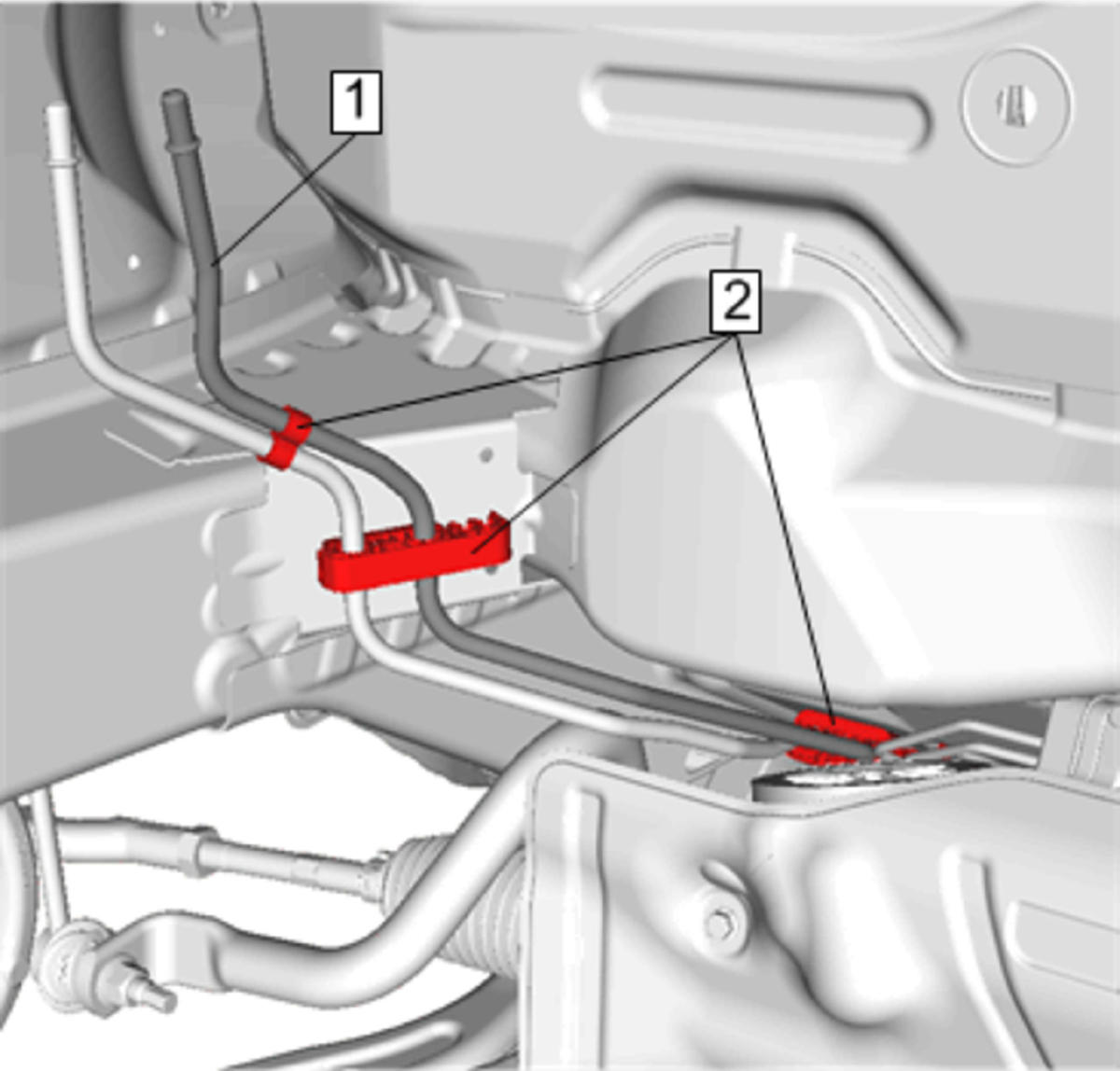

    4. Fig 2: Fuel Feed Front Pipe And Retainers
    GM4590635Courtesy of GENERAL MOTORS COMPANY
  4. Install Fuel Feed Front Pipe (1) @ Retainers (2) (Qty: 3)
    5. Fig 3: Fuel Pipe Shield
    GM4175820Courtesy of GENERAL MOTORS COMPANY
  5. Install Fuel Pipe Shield (1)
  6. Connect Fuel Feed Pipe. Refer to Fuel Feed Pipe Replacement (Engine LTG) Fuel Feed Pipe Replacement (Engine LCV)
  7. Lower the vehicle.
  8. Cycle the ignition to run the fuel pump and inspect for fuel leaks.
